开发日志 AYRenderer

渲染Pass,VertexShader

模型矩阵与法线矩阵

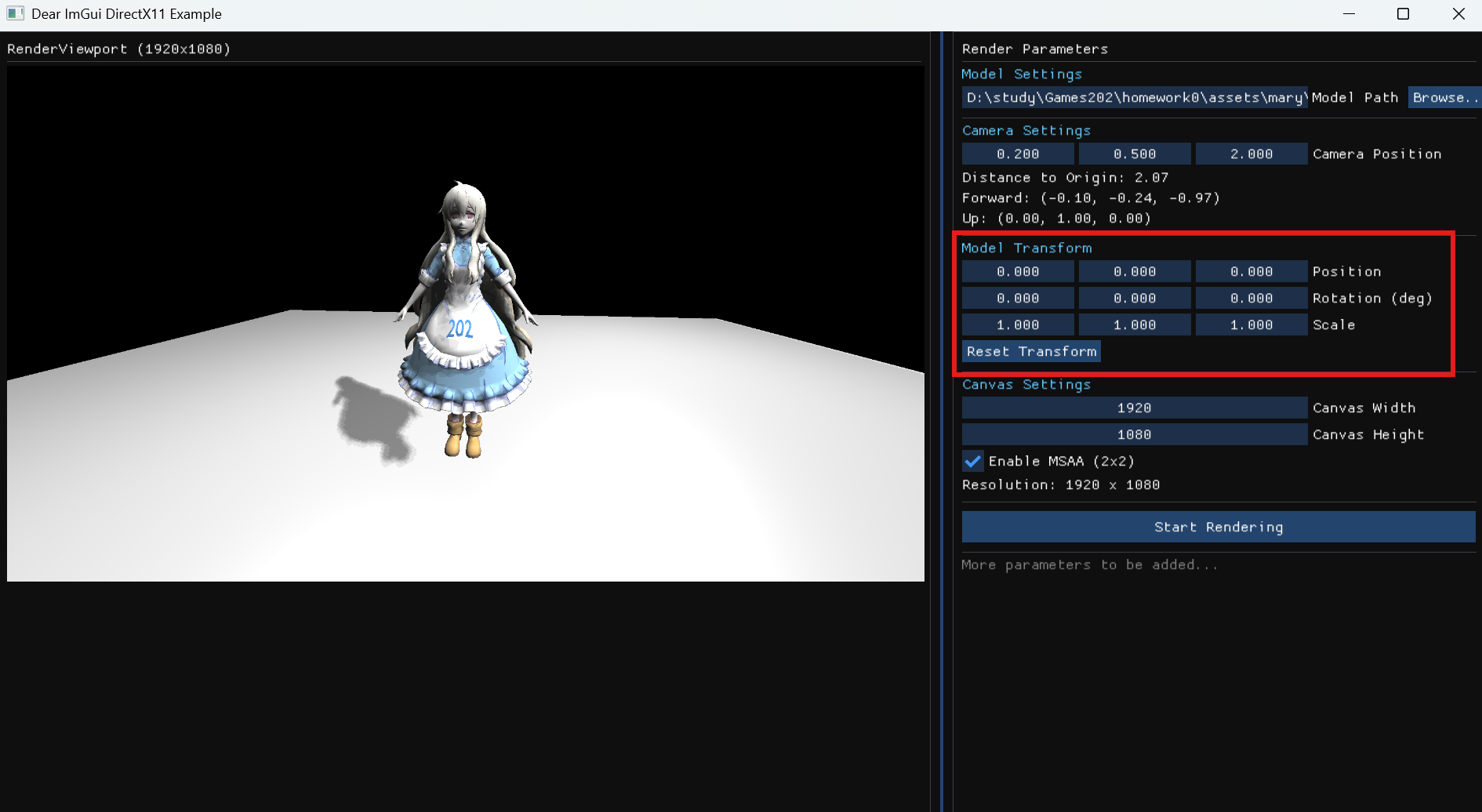

在AYRenderer的UI界面中,用户可以自行设置渲染物体的 Transform

Transform

这个 Transform 会形成所谓的 Model 矩阵,在顶点着色器(VertexShader)中会用到这个矩阵来对顶点进行变换。(即M变换)

当然所谓的顶点不只有位置和旋转的属性,还有法线属性,而法线的变换所对应的 Normal Matrix 则是 Model Matrix逆转置矩阵

1
2
3
Mat4 modelMatrix = object.transform.GetModelMatrix();
// 法线矩阵是模型矩阵的逆转置矩阵
Mat4 normalMatrix = modelMatrix.Inverse().Transpose();

我们来证明一下,首先假设模型空间中某顶点对应的切线为 t⃗,该切线可以由模型空间的两个顶点 A, B 表示: t⃗ = B − A.

经过模型变换后,对应的切线 $\vec{t'}$ 为: $$ \vec{t'} = MB - MA = M(B - A) = M\vec{t}. $$

因此切线的变换和顶点位置变换是一样的,都是由模型矩阵 M 表示。

然后我们考虑模型空间中该顶点的法线属性 n⃗,法线是垂直于切线的,因此有: n⃗Tt⃗ = 0.

在世界空间中,该法线属性为 $\vec{n'}$,同样需要满足垂直于切线 $\vec{t'}$ 的条件: $$ \vec{n'}^T \vec{t'} = 0. $$

假设法线的变换矩阵为 N,则有: $$ \vec{n'} = N \vec{n}. $$

因此有: $$ \vec{n'}^T \vec{t'} = (N \vec{n})^T (M \vec{t}) = \vec{n}^T N^T M \vec{t} = 0. $$

我们需要让 NTM = I,即 N = (MT) − 1,这就证明了法线矩阵是模型矩阵的逆转置矩阵。

View变换

以下是AYRenderer实现的VertexShader:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
namespace AYRRenderer
{
// 25/11/18: 实现顶点着色器的Execute函数
std::vector<VertexShaderOutput> VertexShader::Execute(const DrawCall &drawCall) const
{
std::vector<VertexShaderOutput> outputs{};
if (!camera || !drawCall.mesh)
return outputs;

const Mat4& view = camera->GetViewMatrix();
const Mat4& projection = camera->GetProjectionMatrix();

const Mat4& model = drawCall.modelMatrix;

Mat4 mvp = projection * view * model;
Mat4 normalMatrix = drawCall.normalMatrix;

outputs.reserve(drawCall.mesh->vertices.size());

// TODO: 多线程?
for (const auto& vertex : drawCall.mesh->vertices)
{
VertexShaderOutput output;

const Vec4 localPosition(vertex.position, 1.0f);
const Vec4 clipPosition = mvp * localPosition;
output.clipPosition = clipPosition;
output.reciprocalW = (clipPosition.w != 0.0f) ? 1.0f / clipPosition.w : 0.0f;

const Vec4 worldPosition4 = model * localPosition;
output.worldPosition = Vec3(worldPosition4.x, worldPosition4.y, worldPosition4.z);

const Vec4 normal4(vertex.normal, 0.0f);
const Vec4 worldNormal4 = normalMatrix * normal4;
output.worldNormal = Vec3(worldNormal4.x, worldNormal4.y, worldNormal4.z).Normalized();

output.texCoord = vertex.texCoord;
output.color = vertex.color;

outputs.push_back(output);
}

return outputs;
}
}

这个函数会先计算所谓的MVP矩阵。M矩阵即上面提到的 Model ,由用户设定渲染对象的Transform而定。而View矩阵则通过以下数学函数计算:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
static Mat4 LookAt(const Vec3& eye, const Vec3& center, const Vec3& up)
{
// 位置e
Vec3 e{eye};
// 观察方向g
Vec3 g{(center - eye).Normalized()};
// 相机朝上方向t
Vec3 t{up};
// 通过g和t计算相机的右方向s
Vec3 s = g.Cross(t).Normalized();
// 需要重新计算相机的上方向t,确保g,t,s三者正交
t = s.Cross(g).Normalized();
Mat4 lookAt;
lookAt(0, 0) = s.x; lookAt(0, 1) = s.y; lookAt(0, 2) = s.z; lookAt(0, 3) = -s.Dot(e);
lookAt(1, 0) = t.x; lookAt(1, 1) = t.y; lookAt(1, 2) = t.z; lookAt(1, 3) = -t.Dot(e);
lookAt(2, 0) = -g.x; lookAt(2, 1) = -g.y; lookAt(2, 2) = -g.z; lookAt(2, 3) = g.Dot(e);
lookAt(3, 0) = 0.0f; lookAt(3, 1) = 0.0f; lookAt(3, 2) = 0.0f; lookAt(3, 3) = 1.0f;
return lookAt;
}

这个推导比较简单,可以看我学习Games101的笔记。主要思想就是对于正向地移动相机的变换并不好求,因此可以考虑先求出相对好求的逆变换。

Projection变换

项目提供的Projection函数如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
static Mat4 Perspective(float fovYDegrees, float aspect, float nearPlane, float farPlane)
{
// 1. 确保 n, f 为正数且 f > n
// 2. 转换 FOV 为弧度
float fovYRadians = fovYDegrees * (3.14159265358979323846f / 180.0f);

// 计算 cot(fov/2)
float tanHalfFov = std::tan(fovYRadians / 2.0f);
float f = 1.0f / tanHalfFov; // cotangent
Mat4 result;
// 初始化为0
for(int i=0; i<4; ++i) for(int j=0; j<4; ++j) result(i,j) = 0.0f;
// 0行0列: X缩放
result(0, 0) = f / aspect;

// 1行1列: Y缩放
result(1, 1) = f;

// 2行2列: Z映射 A
// 我们希望: -n -> -1, -f -> 1 (OpenGL标准NDC Z范围 -1到1)
// 公式: (z * A + B) / -z = z_ndc
result(2, 2) = -(farPlane + nearPlane) / (farPlane - nearPlane);

// 2行3列: Z映射 B
result(2, 3) = -(2.0f * farPlane * nearPlane) / (farPlane - nearPlane);

// 3行2列: W = -z (确保 W 为正)
result(3, 2) = -1.0f;

return result;
}

这个矩阵和Games101的推导不一样。经过Projection变换后,我们进入了一个所谓的Clip Space。这个空间事实上是个四维空间,而所有ClipSpace坐标的w值都等于变换前z值的相反数(即w =  − z)。采用OpenGL规范,每个顶点的x,y,z的范围都应该是[-w, w]。这里硬性要求w为正数,而如果采用Games101的方式,你就需要自己修改一下六个面的相交与判Inside的策略了。

你如果要推导这个矩阵的话,可以使用和Games101的同款推导,只不过要注意变换后的w值是-z而不是z。Games101对于Projection的推导采用了两步,先将视锥体压缩成长方体,然后采用一遍正交投影。

为什么要在Clip Space中进行裁剪呢?这个和我们在NDC内做插值要使用透视矫正是一个道理。Clip Space到NDC中间经过一个透视除法,这个变换本身是非线性的。因此在NDC内进行线性插值与在Clip Space内进行线性插值,二者并不对应。然而Clip Space和World Space之间的变换是线性的,因此在Clip Space内进行线性插值是合理的。在NDC内计算线段和面的交点,和Clip Space内计算线段和面的交点,二者并不等价。

FragmentShader

AYRenderer提供了Blinn-Phong的FragmentShader实现:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
FragmentOutput BlinnPhongFSPolicy::Execute(const FragmentInput &input, const Uniforms &uniforms)
{
// 实现Blinn-Phong光照模型
FragmentOutput output;

// 法线
Vec3 N = input.worldNormal.Normalized();
// 视线
Vec3 V = (uniforms.cameraPosition - input.worldPosition).Normalized();
Vec3 finalColor = Vec3::Zero();
for(const auto& light : uniforms.lights)
{
// 光源方向
Vec3 L;
// 衰减
float attenuation = 1.0f;
if(light->type == AYRScene::LightType::Directional)
{
L = (-light->direction).Normalized();
}
else
{
// 点光源:L = LightPos - FragPos
Vec3 lightDir = light->position - input.worldPosition;
float distance = lightDir.Length();
L = lightDir.Normalized();
// 计算衰减: 1 / (c + l*d + q*d^2)
// 避免除以0
float denominator = light->constant + light->linear * distance + light->quadratic * (distance * distance);
attenuation = 1.0f / std::max(denominator, 0.0001f);
}
// Diffuse = Kd * LightColor * max(dot(N, L), 0)
float diff = std::max(N.Dot(L), 0.0f);
Vec3 diffusecolor = uniforms.material.diffuseColor.ToVec3NoDivideW();
if(uniforms.material.diffuseMap)
{
// 采样纹理
Vec4 texColor = uniforms.material.diffuseMap->Sample(input.texCoord);
diffusecolor = texColor.ToVec3NoDivideW();
}
Vec3 diffuse = diffusecolor * attenuation * std::max(0.f, N.Dot(L)) * light->intensity * light->color.ToVec3NoDivideW();

// Specular = Ks * LightColor * (max(dot(N, H), 0))^shininess
Vec3 H = (L + V).Normalized(); // 半程向量
float spec = std::pow(std::max(N.Dot(H), 0.0f), uniforms.material.shininess);
Vec3 specular = uniforms.material.specularColor.ToVec3NoDivideW() * spec * attenuation * light->intensity * light->color.ToVec3NoDivideW();
// shadow
float shadowFactor = ComputeShadowPCFOrPCSS(light, uniforms, input.worldPosition);
finalColor += (diffuse + specular) * shadowFactor;
}
// ambient
Vec3 ambient = uniforms.material.ambientColor.ToVec3NoDivideW() * uniforms.ambientIntensity;
finalColor += ambient;
output.color = Vec4(finalColor, 1.0f);
return output;
}

具体公式可以参照Games101的推导。只不过这里的实现引入了一个attenuation的概念,用于模拟点光源的衰减。

Shadow Mapping

目前AYRenderer提供极其简陋的PCF和PCSS实现。PCF用于软化无面积光源的硬阴影,而PCSS则用于模拟有面积光源的软阴影。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
static float ComputeShadowPCFOrPCSS(const AYRScene::Light* light,
const Uniforms& uniforms,
const Vec3& worldPos)
{
if (!uniforms.enableShadow || !light->castShadow) return 1.0f;
if (light->shadowMaps.empty() || light->lightSpaceMatrices.empty() || !light->shadowMaps[0])
return 1.0f;
const auto& sm = light->shadowMaps[0];
const Mat4& lightMVP = light->lightSpaceMatrices[0];
// 世界坐标 -> 光空间
Vec4 lp = lightMVP * Vec4(worldPos, 1.0f);
if (std::abs(lp.w) < 1e-5f) return 1.0f;
Vec3 ndc = Vec4::PerspectiveDivide(lp);
// NDC -> UV,[0,1]
float u = ndc.x * 0.5f + 0.5f;
float v = 0.5f - ndc.y * 0.5f;
float depth = ndc.z; // depth buffer 0~1
if (u < 0.0f || u > 1.0f || v < 0.0f || v > 1.0f)
return 1.0f;
auto sample = [&](float du, float dv) -> float
{
float sd = sm->SampleDepth(u + du, v + dv);
return (depth - uniforms.shadowBias > sd) ? 0.0f : 1.0f;
};
// ----- PCF -----
static const Vec2 pcfKernel[16] = {
Vec2(-1.5f, -1.5f), Vec2(-0.5f, -1.5f), Vec2(0.5f, -1.5f), Vec2(1.5f, -1.5f),
Vec2(-1.5f, -0.5f), Vec2(-0.5f, -0.5f), Vec2(0.5f, -0.5f), Vec2(1.5f, -0.5f),
Vec2(-1.5f, 0.5f), Vec2(-0.5f, 0.5f), Vec2(0.5f, 0.5f), Vec2(1.5f, 0.5f),
Vec2(-1.5f, 1.5f), Vec2(-0.5f, 1.5f), Vec2(0.5f, 1.5f), Vec2(1.5f, 1.5f)
};
if (!uniforms.usePCSS)
{
float radiusUV = uniforms.pcfRadius / static_cast<float>(sm->width);
float sum = 0.0f;
for (auto k : pcfKernel) sum += sample(radiusUV * k.x, radiusUV * k.y);
return sum / 16.0f;
}
// ----- PCSS -----
// 1) Blocker search
static const Vec2 searchKernel[16] = {
Vec2(-2, -2), Vec2(0, -2), Vec2(2, -2),
Vec2(-2, -1), Vec2(0, -1), Vec2(2, -1),
Vec2(-2, 0), Vec2(-1, 0), Vec2(1, 0), Vec2(2, 0),
Vec2(-2, 1), Vec2(0, 1), Vec2(2, 1),
Vec2(-2, 2), Vec2(0, 2), Vec2(2, 2)
};
float searchUV = uniforms.pcssSearchRadius / static_cast<float>(sm->width);
float blockerSum = 0.0f;
float blockerCount = 0.0f;
for (auto k : searchKernel)
{
float sd = sm->SampleDepth(u + searchUV * k.x, v + searchUV * k.y);
if (depth - uniforms.shadowBias > sd)
{
blockerSum += sd;
blockerCount += 1.0f;
}
}
if (blockerCount <= 0.0f) return 1.0f; // 无遮挡者,完全亮
float avgBlocker = blockerSum / blockerCount;
// 2) 根据几何关系估算半影大小
float penumbra = (depth - avgBlocker) / std::max(avgBlocker, 1e-4f) * light->lightRadius;
float filterUV = penumbra * uniforms.pcfRadius / static_cast<float>(sm->width);
// 3) 可变核 PCF
float sum = 0.0f;
for (auto k : pcfKernel) sum += sample(filterUV * k.x, filterUV * k.y);
return sum / 16.0f;
}

PCF的原理是在ShadowMap中以当前像素为中心采样多个点,统计这些点中有多少被遮挡了(即深度值小于当前像素的深度值)。最终的阴影强度就是被遮挡的点占总采样点的比例。

PCSS则需要使用 lightRadius 来计算PCF的采样半径。这里我们在固定的区域执行Blocker Search,统计平均遮挡者深度。根据当前像素与平均遮挡者深度的关系,估算半影大小。最后使用这个半影大小作为PCF的采样半径,执行可变核PCF。

$$ \text{Penumbra} = \frac{\text{Depth} - \text{AvgBlocker}}{\max(\text{AvgBlocker}, 1e-4f)} \times \text{LightRadius}. $$

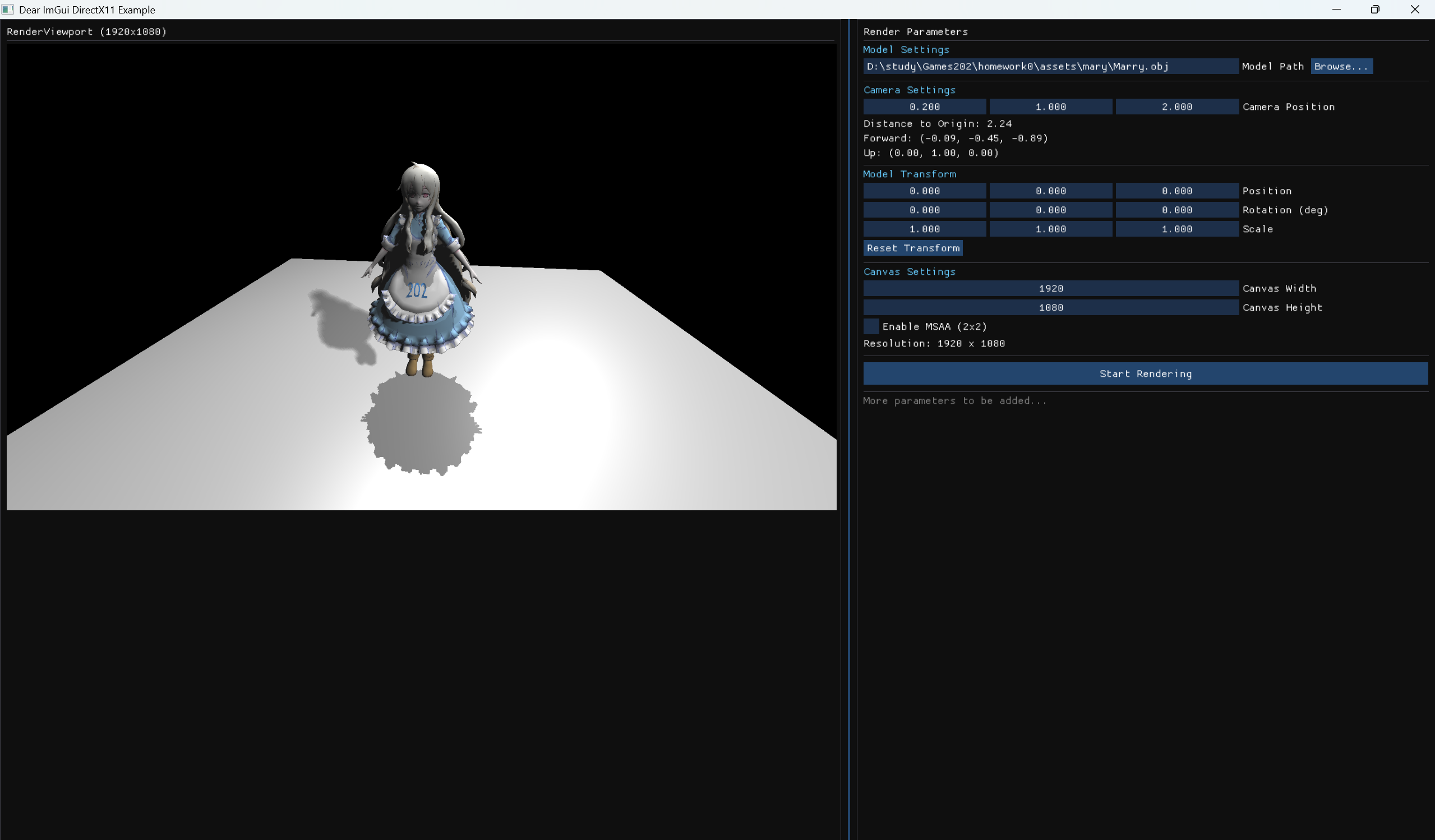

渲染效果如下: ShadowMap

可以看到较远处的阴影更模糊,而较近处的阴影更清晰,这就是PCSS的效果。

多线程渲染

在渲染管线中的很多地方都可以采用多线程提高程序的并行度。

首先以VertexShader为例:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
std::vector<VertexShaderOutput> VertexShader::Execute(const DrawCall &drawCall) const
{
std::vector<VertexShaderOutput> outputs{};
if (!camera || !drawCall.mesh)
return outputs;

const Mat4& view = camera->GetViewMatrix();
const Mat4& projection = camera->GetProjectionMatrix();

const Mat4& model = drawCall.modelMatrix;

Mat4 mvp = projection * view * model;
Mat4 normalMatrix = drawCall.normalMatrix;

const size_t vertexCount = drawCall.mesh->vertices.size();
const size_t threadCount = std::max(1u, std::thread::hardware_concurrency());
std::cout << "VertexShader: Using " << threadCount << " threads for vertex processing." << std::endl;
const size_t batchSize = vertexCount / threadCount;
const size_t remainder = vertexCount % threadCount;

std::vector<std::thread> threads;
std::vector<std::vector<VertexShaderOutput>> threadLocalOutputs(threadCount);

size_t currentStart = 0;
for(size_t t = 0; t < threadCount; ++t)
{
// 分配顶点范围:最后一个线程处理剩余顶点
size_t currentEnd = currentStart + batchSize + (t == threadCount - 1 ? remainder : 0);
// 防止越界
currentEnd = std::min(currentEnd, vertexCount);

threads.emplace_back(
[this](const DrawCall& drawCall, const Mat4& mvp, const Mat4& normalMatrix, const Mat4& model, size_t startIdx, size_t endIdx, std::vector<VertexShaderOutput>& localOutputs)
{this->ProcessVertexBlock(drawCall, mvp, normalMatrix, model, startIdx, endIdx, localOutputs); },
std::cref(drawCall),
std::cref(mvp),
std::cref(normalMatrix),
std::cref(model),
currentStart,
currentEnd,
std::ref(threadLocalOutputs[t])
);

currentStart = currentEnd;
}

for(auto& thread : threads)
{
if(thread.joinable())
thread.join();
}

size_t totalSize = 0;
for (const auto& local : threadLocalOutputs)
totalSize += local.size();
outputs.reserve(totalSize);

assert(totalSize == vertexCount); // 确保没有丢失顶点

// 拼接所有局部结果
for (auto& local : threadLocalOutputs)
{
outputs.insert(outputs.end(), std::make_move_iterator(local.begin()),
std::make_move_iterator(local.end()));
local.clear(); // 释放局部内存
}

return outputs;
}

这里我们没采用任何锁机制,而是为每个线程分配一个独立的输出数组,线程之间没有共享数据,因此不需要担心线程安全问题。最后在主线程中将所有局部结果拼接成最终的输出。

这里注意,std::thread 出于安全考虑,默认将捕获的参数在自己的线程空间里做一个值拷贝,因此我们需要使用 std::refstd::cref 来包装我们的参数,这样做值拷贝的是这个wrapper类,访问的仍然是原来的对象。

在Rasterizer,我将三角形进行了分批并行处理。

当然在内部执行FS的过程可能涉及到对共有的Buffer的访问,因此这里采用简单的SpinLock来作为互斥机制:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
// 轻量级像素自旋锁(不可拷贝/移动)
// 平常用的std::mutex是内核锁,由于我们这有大量像素需要锁,使用std::mutex会有很大性能开销,因此我们实现了一个简单的自旋锁
struct PixelSpinLock {
std::atomic_flag flag = ATOMIC_FLAG_INIT; // 初始为false(未锁定)

void lock() {
// 自旋等待,直到拿到锁(test_and_set返回false表示成功)
while (flag.test_and_set(std::memory_order_acquire));
}

void unlock() {
// 释放锁(清空flag)
flag.clear(std::memory_order_release);
}

// 禁用拷贝/移动(必须)
PixelSpinLock(const PixelSpinLock&) = delete;
PixelSpinLock& operator=(const PixelSpinLock&) = delete;
PixelSpinLock(PixelSpinLock&&) = delete;
PixelSpinLock& operator=(PixelSpinLock&&) = delete;

// 空构造(emplace_back需要)
PixelSpinLock() = default;
};

static std::unique_ptr<PixelSpinLock[]> pixelLocks;
static int pixelLockCount = 0;

static void initPixelLocks(int size)
{
if (size <= 0)
{
pixelLocks.reset();
pixelLockCount = 0;
return;
}

// 仅在尺寸变化时重新分配,避免每帧大量堆分配
if (size != pixelLockCount || !pixelLocks)
{
pixelLocks = std::make_unique<PixelSpinLock[]>(size);
pixelLockCount = size;
}
}

static PixelSpinLock& getPixelLock(int pixelIndex)
{
assert(pixelLocks != nullptr);
assert(pixelIndex >= 0 && pixelIndex < pixelLockCount);
return pixelLocks[pixelIndex];
}

可以采用RAII机制进一步优化,但我懒得搞了。具体源码见仓库。
