设计模式

资料来源于NJU研究生课程《高级软件设计》

设计模式指的是在软件工程中，针对特定问题的典型解决方案的一种标准化描述。

通常可分为三大类（Design Pattern Catalog）： - 创建型模式：与对象创建有关：单例、工厂、抽象工厂等 - 结构型模式：将类或对象按某种布局组成更大的结构：装饰、适配器、外观、组合、代理等 - 行为型模式：类或对象之间怎样相互协作共同完成单个对象无法单独完成的任务，以及怎样分配职责：策略、状态、观察者、迭代器、模板、命令等

本文给出以上14个常用设计模式的cpp实现示例。

设计原则

  • 单一职责原则（SRP，Single Responsibility Principle）：一个类只负责一项职责
  • 开闭原则（OCP，Open-Closed Principle）：软件实体应对扩展开放，对修改关闭
  • 里氏替换原则（LSP，Liskov Substitution Principle）：子类对象必须能够替换掉所有父类对象
  • 依赖倒置原则（DIP，Dependency Inversion Principle）：高层模块不应该依赖低层模块，二者都应该依赖于抽象；针对接口编程，不针对实现编程
  • 接口隔离原则（ISP，Interface Segregation Principle）：使用多个专门的接口，而不使用单一的总接口
  • 合成复用原则（CAR，Composite Reuse Principle）：尽量使用对象组合/聚合，而不是继承来达到复用的目的
  • 迪米特法则（LoD，Law of Demeter）：一个对象应当对其他对象有尽可能少的了解，即只与直接的朋友通信。也叫“最少知识原则”
  • 好莱坞原则（Hollywood Principle）：低层组件不应该调用高层组件，而应该让高层组件来控制何时调用低层组件：“不要调用我们，我们会调用你”（Don’t call us, we will call you）

创建型模式

单例模式

Insight：本身是用来保证一个类只有一个实例，难点在于具体场景中如何对需求进行抽象，知道哪些类需要单例。

C++中可以使用static 局部变量直接实现线程安全的懒汉式单例模式：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
class Singleton
{
public:
    static Singleton& getInstance()
    {
        static Singleton instance;
        return instance;
    }

    // 禁止拷贝和赋值
    Singleton(const Singleton&) = delete;
    Singleton& operator=(const Singleton&) = delete;
    // 禁止移动构造和移动赋值
    Singleton(Singleton&&) = delete;
    Singleton& operator=(Singleton&&) = delete;

private:
    // 私有构造函数，防止外部创建实例
    Singleton() = default;
};

当然为了对比，接下来给出一些更传统使用 new 创建的单例模式实现。

懒汉式——线程不安全：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
// 懒汉式 - 线程不安全
class LazyUnsafeSingleton {
public:
    static LazyUnsafeSingleton* getInstance() {
        if (!instance) {                    // 多线程下会有竞态
            instance = new LazyUnsafeSingleton();
        }
        return instance;
    }

    LazyUnsafeSingleton(const LazyUnsafeSingleton&) = delete;
    LazyUnsafeSingleton& operator=(const LazyUnsafeSingleton&) = delete;
    LazyUnsafeSingleton(LazyUnsafeSingleton&&) = delete;
    LazyUnsafeSingleton& operator=(LazyUnsafeSingleton&&) = delete;

private:
    LazyUnsafeSingleton() = default;
    static LazyUnsafeSingleton* instance;
};

LazyUnsafeSingleton* LazyUnsafeSingleton::instance = nullptr;

饿汉式 - 线程安全（静态对象在程序启动期构造）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
class EagerSingleton {
public:
    static EagerSingleton& getInstance() {
        return instance;
    }

    EagerSingleton(const EagerSingleton&) = delete;
    EagerSingleton& operator=(const EagerSingleton&) = delete;
    EagerSingleton(EagerSingleton&&) = delete;
    EagerSingleton& operator=(EagerSingleton&&) = delete;

private:
    EagerSingleton() = default;
    static EagerSingleton instance;
};

EagerSingleton EagerSingleton::instance;

懒汉式 - 线程安全（使用互斥锁）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
class LazySafeSingleton {
public:
    static LazySafeSingleton* getInstance() {
        std::lock_guard<std::mutex> lock(mtx);
        if (!instance) {
            instance = new LazySafeSingleton();
        }
        return instance;
    }

    LazySafeSingleton(const LazySafeSingleton&) = delete;
    LazySafeSingleton& operator=(const LazySafeSingleton&) = delete;
    LazySafeSingleton(LazySafeSingleton&&) = delete;
    LazySafeSingleton& operator=(LazySafeSingleton&&) = delete;

private:
    LazySafeSingleton() = default;
    static LazySafeSingleton* instance;
    static std::mutex mtx;
};

LazySafeSingleton* LazySafeSingleton::instance = nullptr;
std::mutex LazySafeSingleton::mtx;

双重检查锁 - 线程安全（减少加锁开销，互斥锁只包裹创建过程）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
// 这里的双重检查指的是在加锁前后都检查一次实例是否存在
// std::atomic是vibecoding给我补充的，我其实不会用
class DCLSingleton {
public:
    static DCLSingleton* getInstance() {
        DCLSingleton* p = instance.load(std::memory_order_acquire);
        if (!p) {
            std::lock_guard<std::mutex> lock(mtx);
            p = instance.load(std::memory_order_relaxed);
            if (!p) {
                p = new DCLSingleton();
                instance.store(p, std::memory_order_release);
            }
        }
        return p;
    }

    DCLSingleton(const DCLSingleton&) = delete;
    DCLSingleton& operator=(const DCLSingleton&) = delete;
    DCLSingleton(DCLSingleton&&) = delete;
    DCLSingleton& operator=(DCLSingleton&&) = delete;

private:
    DCLSingleton() = default;
    static std::atomic<DCLSingleton*> instance;
    static std::mutex mtx;
};

std::atomic<DCLSingleton*> DCLSingleton::instance{nullptr};
std::mutex DCLSingleton::mtx;

单例模式类图没有什么特别意义。

符合的设计原则：无

工厂模式

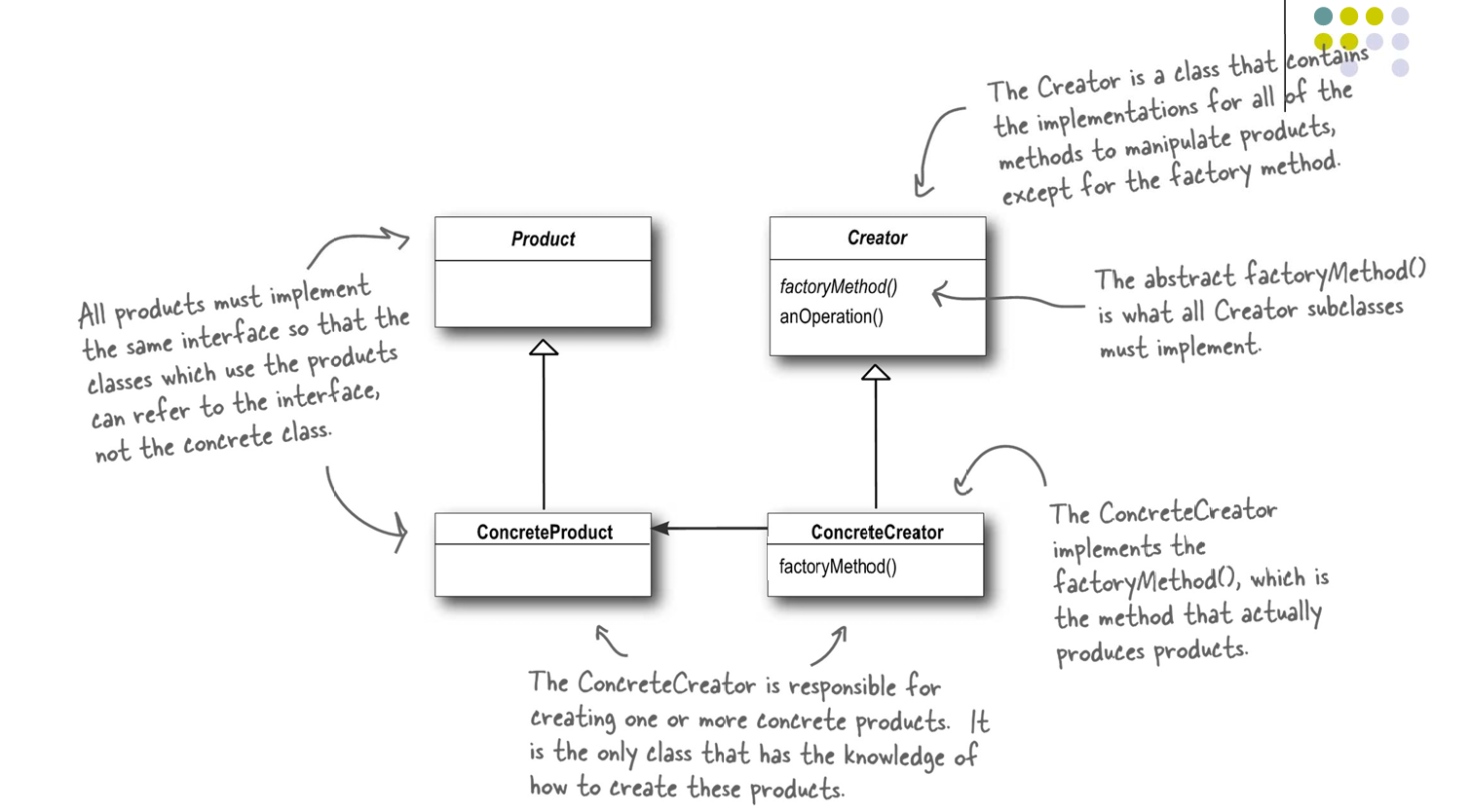

Insight：工厂模式的核心思想是将对象的创建过程封装在一个工厂类中，从而使得客户端代码与具体的对象创建逻辑解耦。这样可以更容易地管理和扩展对象的创建过程。

alt text

相比于简单工厂，工厂方法模式通过引入抽象工厂接口和具体工厂类，使得系统更具扩展性和灵活性。客户端代码只需要依赖于抽象工厂接口，而不需要关心具体的工厂实现，从而实现了依赖倒置原则。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
#include <iostream>
#include <memory>
#include <vector>

// 工厂模式，相比于简单工厂模式，工厂方法模式将创建对象的职责委托给子类
// 这里用Pizza作为例子
class Pizza
{
public:
    void prepare()
    {
        std::cout << "Preparing " << name << std::endl;
        std::cout << "Tossing dough: " << dough << std::endl;
        std::cout << "Adding sauce: " << sauce << std::endl;
        std::cout << "Adding toppings: ";
        for (const auto& topping : toppings)
        {
            std::cout << topping << " ";
        }
        std::cout << std::endl;
    }
protected:
    std::string name;
    std::string dough;
    std::string sauce;
    std::vector<std::string> toppings;
};

// 原示例对于NY和Chicago风格的Cheese分别有四种类型的Pizza，这里简化为只有Cheese一种类型
// 反正就是在对应的工厂中是否添加if-statement而已

class NYStyleCheesePizza : public Pizza
{
public:
    NYStyleCheesePizza()
    {
        name = "NY Style Cheese Pizza";
        dough = "Thin Crust Dough";
        sauce = "Marinara Sauce";
        toppings.push_back("Grated Reggiano Cheese");
    }
};

class ChicagoStyleCheesePizza : public Pizza
{
public:
    ChicagoStyleCheesePizza()
    {
        name = "Chicago Style Cheese Pizza";
        dough = "Extra Thick Crust Dough";
        sauce = "Plum Tomato Sauce";
        toppings.push_back("Shredded Mozzarella Cheese");
    }
};

// 这里我感觉已经有模板方法模式的影子了，因为OrderPizza方法定义了一个算法的骨架
// 而具体的创建细节由子类实现
class PizzaStore
{
public:
    virtual std::unique_ptr<Pizza> CreatePizza(const std::string& type) = 0;

    std::unique_ptr<Pizza> OrderPizza(const std::string& type)
    {
        auto pizza = CreatePizza(type);
        if (pizza)
        {
            pizza->prepare();
        }
        return pizza;
    }
};

class NYPizzaStore : public PizzaStore
{
public:
    std::unique_ptr<Pizza> CreatePizza(const std::string& type) override
    {
        if (type == "cheese")
        {
            return std::make_unique<NYStyleCheesePizza>();
        }
        else
        {
            return nullptr;
        }
    }
};

class ChicagoPizzaStore : public PizzaStore
{
public:
    std::unique_ptr<Pizza> CreatePizza(const std::string& type) override
    {
        if (type == "cheese")
        {
            return std::make_unique<ChicagoStyleCheesePizza>();
        }
        else
        {
            return nullptr;
        }
    }
};

int main()
{
    PizzaStore* nyStore = new NYPizzaStore();
    PizzaStore* chicagoStore = new ChicagoPizzaStore();

    auto pizza1 = nyStore->OrderPizza("cheese");
    std::cout << std::endl;

    auto pizza2 = chicagoStore->OrderPizza("cheese");
    delete nyStore;
    delete chicagoStore;

    return 0;
}

输出：

1
2
3
4
5
6
7
8
9
Preparing NY Style Cheese Pizza
Tossing dough: Thin Crust Dough
Adding sauce: Marinara Sauce
Adding toppings: Grated Reggiano Cheese

Preparing Chicago Style Cheese Pizza
Tossing dough: Extra Thick Crust Dough
Adding sauce: Plum Tomato Sauce
Adding toppings: Shredded Mozzarella Cheese

符合的设计原则：依赖倒置原则、开闭原则。

抽象工厂模式

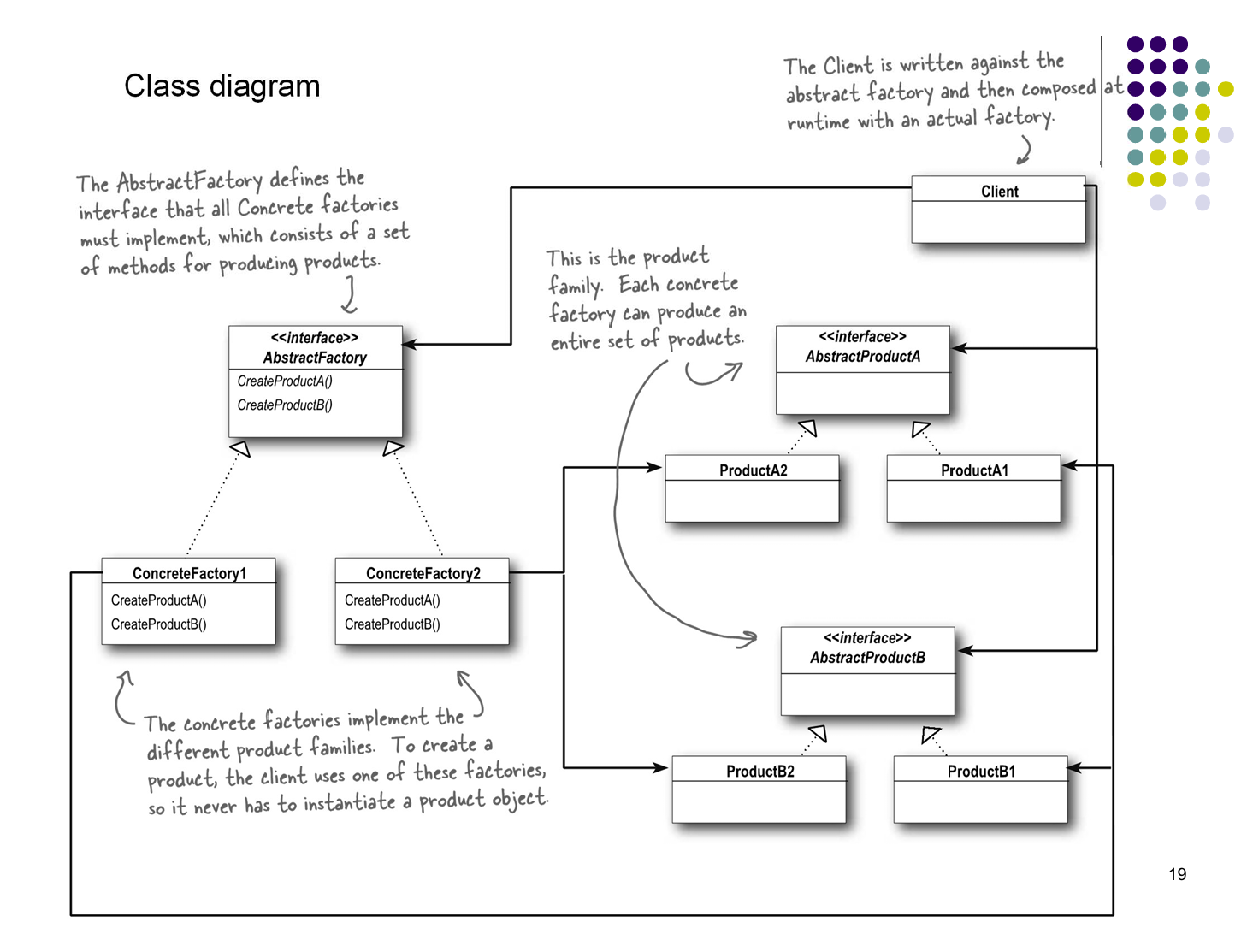

Insight：抽象工厂模式的核心思想是提供一个接口，用于创建一系列相关或相互依赖的对象，而无需指定它们的具体类。这样可以确保客户端代码与具体的对象创建逻辑解耦，从而提高系统的灵活性和可扩展性。

工厂方法模式只考虑深处同等级的产品，但是在显示生活中许多工厂是综合型的工厂，能生产多等级（种类）的产品，如农场里既养动物又种植物，电器厂既生产电视机又生产洗衣机或空调，大学既有软件专业又有生物专业等。

因此简单理解，抽象工厂模式就是能够生产多个不同等级的产品。

alt text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
#include <iostream>
#include <memory>
#include <vector>

// 抽象工厂模式，在工厂模式的基础上进一步扩展，可以创建一系列产品（family）
// 还是拿Pizza举例子
// 制作一个Pizza，我们需要面团(Dough)、酱料(Sauce)、奶酪(Cheese)等原料

class Dough
{
public:
    virtual std::string toString() const = 0;
    virtual ~Dough() = default;
};

class ThinCrustDough : public Dough
{
public:
    std::string toString() const override
    {
        return "Thin Crust Dough";
    }
};

class ThickCrustDough : public Dough
{
public:
    std::string toString() const override
    {
        return "Thick Crust Dough";
    }
};

class Sauce
{
public:
    virtual std::string toString() const = 0;
    virtual ~Sauce() = default;
};

class MarinaraSauce : public Sauce
{
public:
    std::string toString() const override
    {
        return "Marinara Sauce";
    }
};

class PlumTomatoSauce : public Sauce
{
public:
    std::string toString() const override
    {
        return "Plum Tomato Sauce";
    }
};

class Cheese
{
public:
    virtual std::string toString() const = 0;
    virtual ~Cheese() = default;
};

class ReggianoCheese : public Cheese
{
public:
    std::string toString() const override
    {
        return "Reggiano Cheese";
    }
};

class MozzarellaCheese : public Cheese
{
public:
    std::string toString() const override
    {
        return "Mozzarella Cheese";
    }
};

class PizzaIngredientFactory
{
public:
    virtual std::unique_ptr<Dough> CreateDough() = 0;
    virtual std::unique_ptr<Sauce> CreateSauce() = 0;
    virtual std::unique_ptr<Cheese> CreateCheese() = 0;
    virtual ~PizzaIngredientFactory() = default;
};

class NYPizzaIngredientFactory : public PizzaIngredientFactory
{
public:
    std::unique_ptr<Dough> CreateDough() override
    {
        return std::make_unique<ThinCrustDough>();
    }
    std::unique_ptr<Sauce> CreateSauce() override
    {
        return std::make_unique<MarinaraSauce>();
    }
    std::unique_ptr<Cheese> CreateCheese() override
    {
        return std::make_unique<ReggianoCheese>();
    }
};

class ChicagoPizzaIngredientFactory : public PizzaIngredientFactory
{
public:
    std::unique_ptr<Dough> CreateDough() override
    {
        return std::make_unique<ThickCrustDough>();
    }
    std::unique_ptr<Sauce> CreateSauce() override
    {
        return std::make_unique<PlumTomatoSauce>();
    }
    std::unique_ptr<Cheese> CreateCheese() override
    {
        return std::make_unique<MozzarellaCheese>();
    }
};

// TODO: 结合工厂方法模式，设计PizzaStore和Pizza类
// 然后在Pizza的prepare方法中使用这个抽象工厂来获取原料
// 这里我懒得写了
// (但是说实话工厂这边大部分都是VibeCoding自动生成的，我也没啥好写的)
// (工厂三个模式的insight就是让用户不需要关心对象创建的细节)

int main()
{
    // 纽约风味披萨原料工厂
    NYPizzaIngredientFactory nyFactory;
    auto nyDough = nyFactory.CreateDough();
    auto nySauce = nyFactory.CreateSauce();
    auto nyCheese = nyFactory.CreateCheese();
    std::cout << "NY Pizza Ingredients: " << nyDough->toString() << ", "
              << nySauce->toString() << ", " << nyCheese->toString() << std::endl;

    // 芝加哥风味披萨原料工厂
    ChicagoPizzaIngredientFactory chicagoFactory;
    auto chicagoDough = chicagoFactory.CreateDough();
    auto chicagoSauce = chicagoFactory.CreateSauce();
    auto chicagoCheese = chicagoFactory.CreateCheese();
    std::cout << "Chicago Pizza Ingredients: " << chicagoDough->toString() << ", "
              << chicagoSauce->toString() << ", " << chicagoCheese->toString() << std::endl;

    return 0;
}

输出：

1
2
NY Pizza Ingredients: Thin Crust Dough, Marinara Sauce, Reggiano Cheese
Chicago Pizza Ingredients: Thick Crust Dough, Plum Tomato Sauce, Mozzarella Cheese

符合的设计原则：依赖倒置原则、开闭原则。

结构型模式

装饰器模式

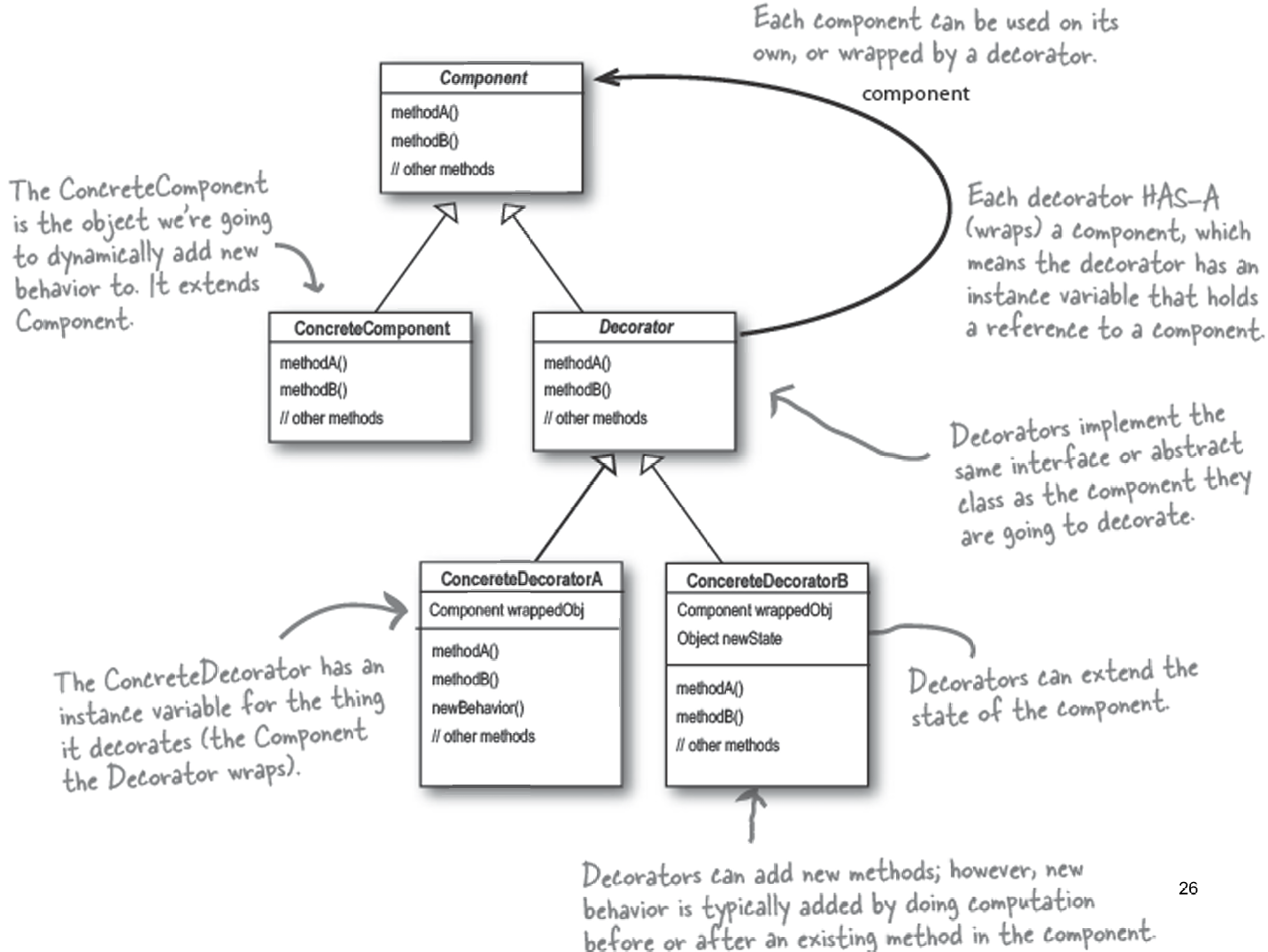

Insight：装饰器模式的核心思想是通过将对象包装在另一个对象中来动态地添加行为或职责，而无需修改原始对象的代码。这样可以实现对对象功能的灵活扩展，同时遵循开闭原则。

alt text

Decorator 相比于 ConcreteComponent 多了一个对 Component 的引用，从而可以在保持原有接口的基础上，动态地添加新的行为。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
#include <iostream>
#include <memory>
#include <vector>
#include <string>

// 设计不同种类的饮料，饮料可以添加配料
class Beverage
{
public:
    virtual std::string getDescription() const
    {
        return description;
    }
    virtual double cost() const = 0;
    virtual ~Beverage() = default;
protected:
    std::string description;
};

// 饮料
class HouseBlend : public Beverage
{
public:
    HouseBlend()
    {
        description = "House Blend Coffee";
    }
    virtual double cost() const override
    {
        return 0.89;
    }
};

class DarkRoast : public Beverage
{
public:
    DarkRoast()
    {
        description = "Dark Roast Coffee";
    }
    virtual double cost() const override
    {
        return 0.99;
    }
};

// 装饰者基类
class CondimentDecorator : public Beverage
{
public:
    explicit CondimentDecorator(Beverage* bev) : beverage(bev)
    {
        description = beverage->getDescription() + ", Condiment";
    }
    virtual ~CondimentDecorator() = default;
protected:
    Beverage* beverage;
};

// 具体装饰者(配料)
class Mocha : public CondimentDecorator
{
public:
    explicit Mocha(Beverage* bev) : CondimentDecorator(bev)
    {
        description = beverage->getDescription() + ", Mocha";
    }
    virtual double cost() const override
    {
        return 0.20 + beverage->cost();
    }
};

class Milk : public CondimentDecorator
{
public:
    explicit Milk(Beverage* bev) : CondimentDecorator(bev)
    {
        description = beverage->getDescription() + ", Milk";
    }
    virtual double cost() const override
    {
        return 0.10 + beverage->cost();
    }
};

int main()
{
    Beverage* beverage1 = new HouseBlend();
    beverage1 = new Mocha(beverage1);
    beverage1 = new Milk(beverage1);
    std::cout << beverage1->getDescription() << " $" << beverage1->cost() << std::endl;
    delete beverage1;

    Beverage* beverage2 = new DarkRoast();
    beverage2 = new Mocha(beverage2);
    beverage2 = new Mocha(beverage2);
    std::cout << beverage2->getDescription() << " $" << beverage2->cost() << std::endl;
    delete beverage2;

    return 0;
}

输出：

1
2
House Blend Coffee, Mocha, Milk $1.19
Dark Roast Coffee, Mocha, Mocha $1.39

符合的设计原则：里氏替换原则、开闭原则、合成复用原则。

适配器模式

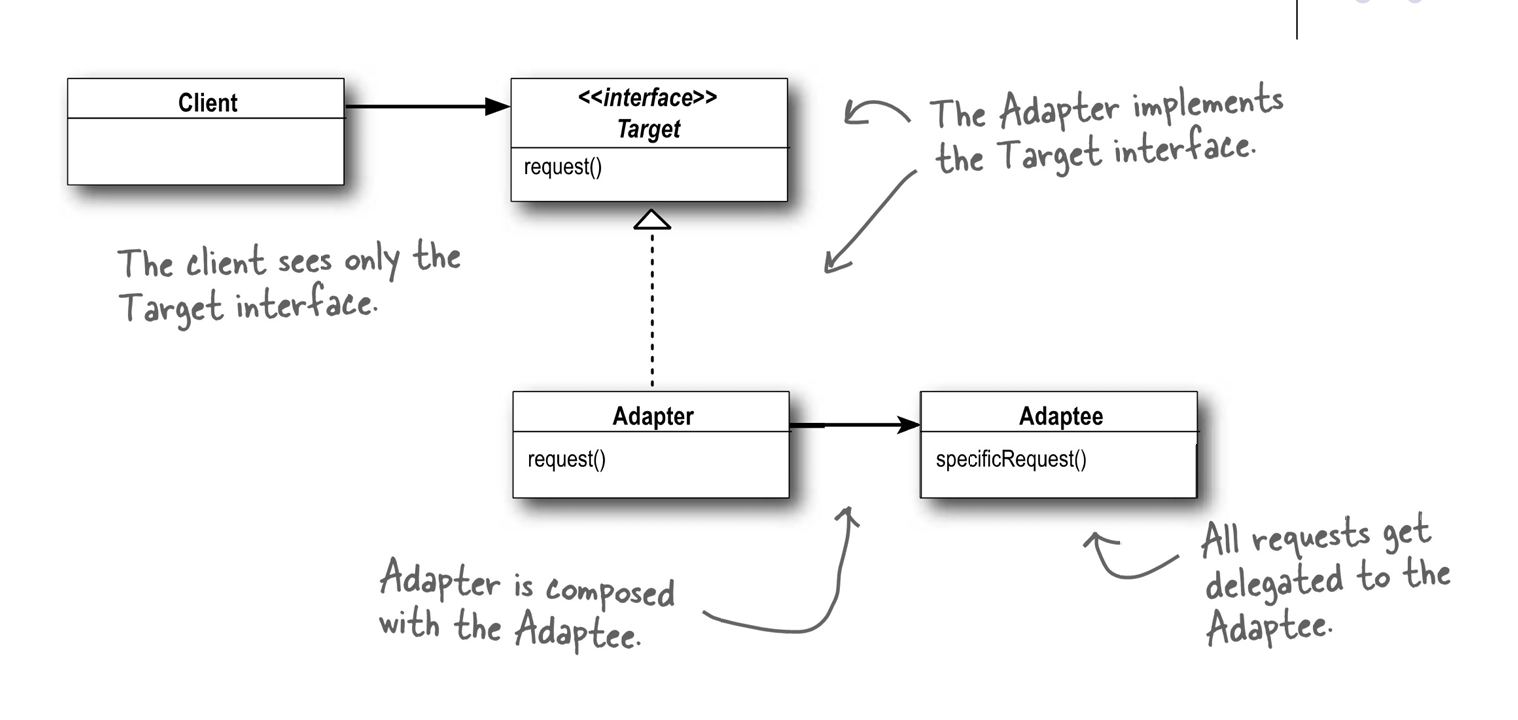

Insight：适配器模式的核心思想是通过创建一个适配器类，将一个类的接口转换成客户端所期望的另一个接口，从而使得原本由于接口不兼容而无法一起工作的类能够协同工作。这样可以实现代码的复用和系统的灵活性。

alt text

适配器相比于继承的原有类(Target)，多了一个对被适配类(Adaptee)的引用。

可以拓展为双向适配器，通过多重继承同时实现两个接口，从而使得两个不兼容的类能够相互适配。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
#include <iostream>

// 适配器模式，将一个类的接口转换成客户希望的另一个接口
// 用鸭子和火鸡的例子
// 例子是很简单，但是实际应用工作量非常大
class Duck
{
public:
    virtual void Quack() = 0;
    virtual void Fly() = 0;
    virtual ~Duck() = default;
};

class MallardDuck : public Duck
{
public:
    void Quack() override
    {
        std::cout << "Quack!" << std::endl;
    }
    void Fly() override
    {
        std::cout << "I'm flying!" << std::endl;
    }
};

class Turkey
{
public:
    virtual void Gobble() = 0;
    virtual void FlyShortDistance() = 0;
    virtual ~Turkey() = default;
};

class WildTurkey : public Turkey
{
public:
    void Gobble() override
    {
        std::cout << "Gobble gobble!" << std::endl;
    }
    void FlyShortDistance() override
    {
        std::cout << "I'm flying a short distance!" << std::endl;
    }
};

class TurkeyAdapter : public Duck
{
public:
    explicit TurkeyAdapter(Turkey* turkey) : turkey(turkey) {}
    void Quack() override
    {
        turkey->Gobble();
    }
    void Fly() override
    {
        // 火鸡飞得很短，这里我们让它飞五次以模拟鸭子的飞行距离
        for (int i = 0; i < 5; ++i)
        {
            turkey->FlyShortDistance();
        }
    }
private:
    Turkey* turkey;
};

// 双向适配：多重继承
class TwoWayAdapter : public Duck, public Turkey
{
public:
    TwoWayAdapter(Duck* duck, Turkey* turkey) : duck(duck), turkey(turkey) {}

    void Quack() override
    {
        turkey->Gobble();
    }
    void Fly() override
    {
        // 火鸡飞得很短，这里我们让它飞五次以模拟鸭子的飞行距离
        for (int i = 0; i < 5; ++i)
        {
            turkey->FlyShortDistance();
        }
    }

    void Gobble() override
    {
        duck->Quack();
    }
    void FlyShortDistance() override
    {
        duck->Fly();
    }
private:
    Duck* duck;
    Turkey* turkey;
};

int main()
{
    MallardDuck duck;
    WildTurkey turkey;

    TurkeyAdapter turkeyAdapter(&turkey);

    std::cout << "The TurkeyAdapter says..." << std::endl;
    turkeyAdapter.Quack();
    turkeyAdapter.Fly();

    TwoWayAdapter twoWayAdapter(&duck, &turkey);
    std::cout << "The TwoWayAdapter as a Duck says..." << std::endl;
    twoWayAdapter.Quack();
    twoWayAdapter.Fly();

    std::cout << "The TwoWayAdapter as a Turkey says..." << std::endl;
    twoWayAdapter.Gobble();
    twoWayAdapter.FlyShortDistance();

    return 0;
}

输出：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
The TurkeyAdapter says...
Gobble gobble!
I'm flying a short distance!
I'm flying a short distance!
I'm flying a short distance!
I'm flying a short distance!
I'm flying a short distance!
The TwoWayAdapter as a Duck says...
Gobble gobble!
I'm flying a short distance!
I'm flying a short distance!
I'm flying a short distance!
I'm flying a short distance!
I'm flying a short distance!
The TwoWayAdapter as a Turkey says...
Quack!
I'm flying!

符合的设计原则：合成复用原则、里氏替换原则。

外观模式

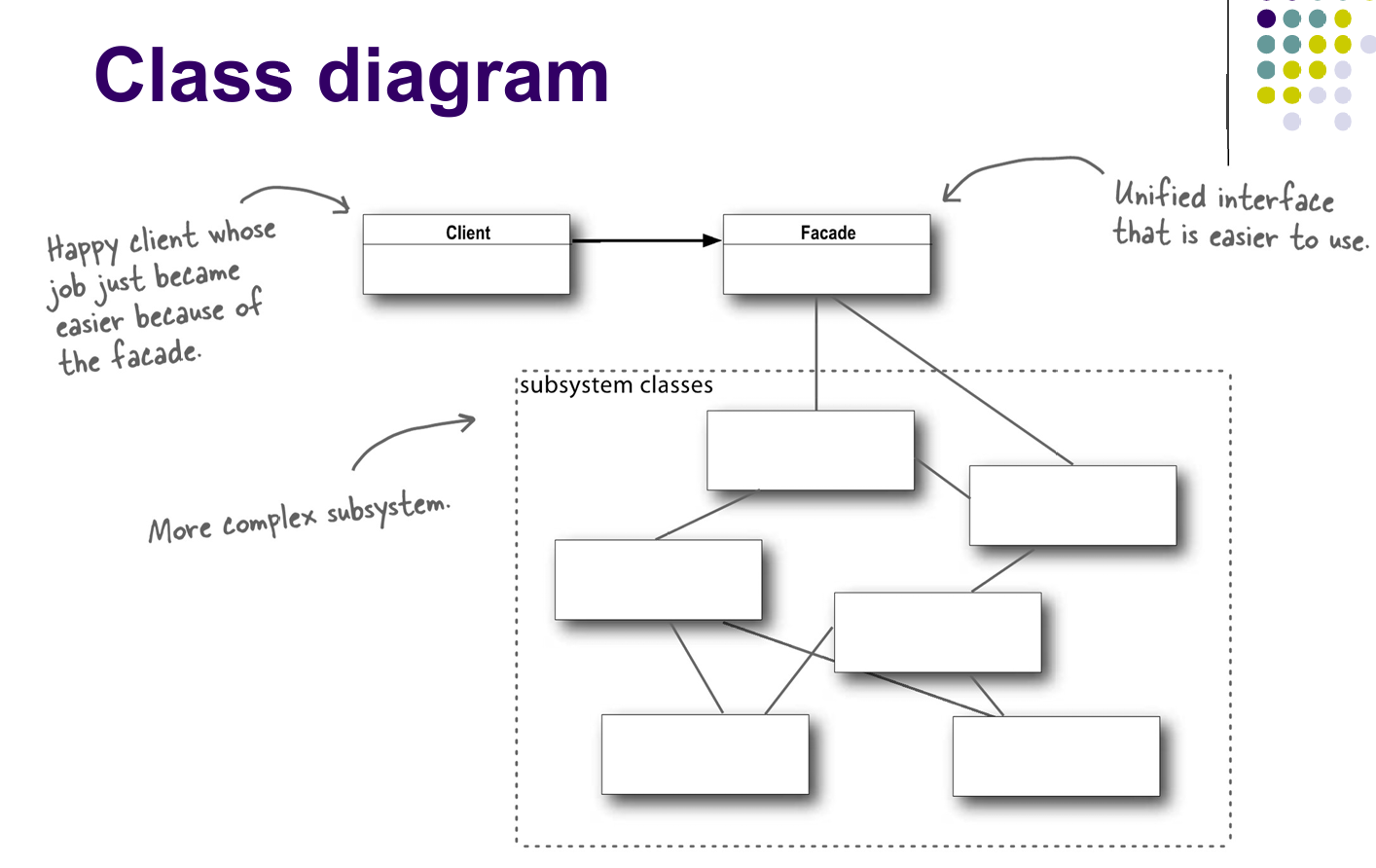

Insight：外观模式的核心思想是通过提供一个统一的接口，简化复杂子系统的使用，从而使得客户端代码与子系统解耦。这样可以提高系统的易用性和可维护性。

alt text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
#include <iostream>
#include <memory>

// 外观模式
// 为复杂子系统提供一个统一的接口，使得子系统更易使用
// 这里用家庭影院系统举例子，实现一键看电影

// 子系统1：爆米花机
class PopcornPopper
{
public:
    void on()
    {
        std::cout << "Popcorn Popper ON" << std::endl;
    }
    void off()
    {
        std::cout << "Popcorn Popper OFF" << std::endl;
    }
    void pop()
    {
        std::cout << "Popping popcorn!" << std::endl;
    }
};

// 子系统2：灯光
class TheaterLights
{
public:
    void dim(int level)
    {
        std::cout << "Theater Lights dimming to " << level << "%" << std::endl;
    }
    void on()
    {
        std::cout << "Theater Lights ON" << std::endl;
    }
};

// 子系统3：投影仪
class Projector
{
public:
    void on()
    {
        std::cout << "Projector ON" << std::endl;
    }
    void off()
    {
        std::cout << "Projector OFF" << std::endl;
    }
    void wideScreenMode()
    {
        std::cout << "Projector in widescreen mode (16x9 aspect ratio)" << std::endl;
    }
};

// 子系统4：音响系统
class SoundSystem
{
public:
    void on()
    {
        std::cout << "Sound System ON" << std::endl;
    }
    void off()
    {
        std::cout << "Sound System OFF" << std::endl;
    }
    void setVolume(int level)
    {
        std::cout << "Sound System volume set to " << level << std::endl;
    }
};

// 好了这些够了，我们来实现外观类
class HomeTheaterFacade
{
public:
    HomeTheaterFacade()
    {
        popcornPopper = new PopcornPopper();
        theaterLights = new TheaterLights();
        projector = new Projector();
        soundSystem = new SoundSystem();
    }
    void watchMovie(const std::string& movie)
    {
        std::cout << "Get ready to watch a movie..." << std::endl;
        popcornPopper->on();
        popcornPopper->pop();
        theaterLights->dim(10);
        projector->on();
        projector->wideScreenMode();
        soundSystem->on();
        soundSystem->setVolume(5);
        std::cout << "Now playing: " << movie << std::endl;
    }
    ~HomeTheaterFacade()
    {
        delete popcornPopper;
        delete theaterLights;
        delete projector;
        delete soundSystem;
    }
private:
    PopcornPopper* popcornPopper;
    TheaterLights* theaterLights;
    Projector* projector;
    SoundSystem* soundSystem;
};

// 顺带一提，UE里的子系统（比如GameInstanceSubsystem）概念不知道和这里的子系统有什么区别，有没有体现内聚
// 但是可以肯定的是UE的子系统都是单例（Singleton）

int main()
{
    HomeTheaterFacade homeTheater;
    homeTheater.watchMovie("Fuck NUAA");
    return 0;
}

输出：

1
2
3
4
5
6
7
8
9
Get ready to watch a movie...
Popcorn Popper ON
Popping popcorn!
Theater Lights dimming to 10%
Projector ON
Projector in widescreen mode (16x9 aspect ratio)
Sound System ON
Sound System volume set to 5
Now playing: Fuck NUAA

符合的设计原则：迪米特法则

组合模式

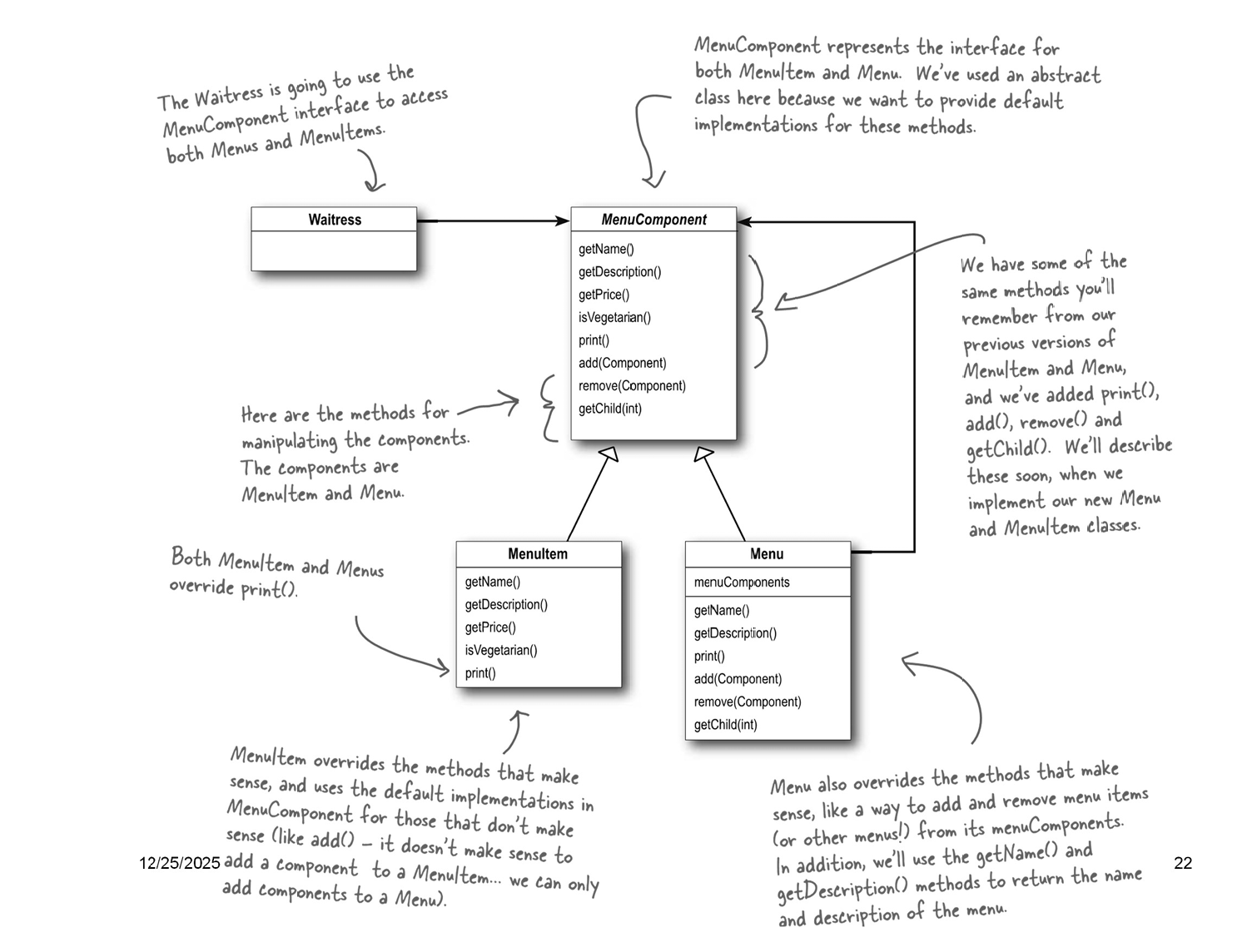

Insight：将对象组合成树形结构，用于表示“整体——部分”关系。用户可用相同方式处理单独和组合对象。

composite

可以同样使用基于组合模式的组合迭代器来对整个树形结构进行遍历。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
#include <iostream>
#include <memory>
#include <string>
#include <vector>
#include <stack>
#include <algorithm>


// 组合模式，将对象组合成树形结构以表示“部分-整体”的层次结构
// 这里使用透明组合，即组件接口对叶子和容器都一致
// 还是拿菜单举例子，菜单可以包含菜单项和子菜单
class MenuComponent
{
public:
    virtual void Add(std::shared_ptr<MenuComponent> component)
    {
        throw std::runtime_error("Unsupported Operation");
    }
    virtual void Remove(std::shared_ptr<MenuComponent> component)
    {
        throw std::runtime_error("Unsupported Operation");
    }
    virtual std::shared_ptr<MenuComponent> GetChild(int index)
    {
        throw std::runtime_error("Unsupported Operation");
    }
    virtual std::string GetName() const
    {
        throw std::runtime_error("Unsupported Operation");
    }
    virtual std::string GetDescription() const
    {
        throw std::runtime_error("Unsupported Operation");
    }
    virtual double GetPrice() const
    {
        throw std::runtime_error("Unsupported Operation");
    }
    virtual bool IsVegetarian() const
    {
        throw std::runtime_error("Unsupported Operation");
    }
    virtual ~MenuComponent() = default;
    virtual void Print() const = 0;
};

class MenuItem : public MenuComponent
{
public:
    MenuItem(const std::string& name, const std::string& description, double price, bool vegetarian)
        : name(name), description(description), price(price), vegetarian(vegetarian) {}
    std::string GetName() const override
    {
        return name;
    }
    std::string GetDescription() const override
    {
        return description;
    }
    double GetPrice() const override
    {
        return price;
    }
    bool IsVegetarian() const override
    {
        return vegetarian;
    }
    void Print() const override
    {
        std::cout << "  " << GetName();
        if (IsVegetarian())
        {
            std::cout << " (v)";
        }
        std::cout << ", " << GetPrice() << std::endl;
        std::cout << "     -- " << GetDescription() << std::endl;
    }
protected:
    std::string name;
    std::string description;
    double price;
    bool vegetarian;
};



class Iterator
{
public:
    virtual bool HasNext() = 0;
    virtual MenuComponent* Next() = 0;
    virtual ~Iterator() = default;
};

class SimpleIterator : public Iterator
{
public:
    explicit SimpleIterator(const std::vector<std::shared_ptr<MenuComponent>>& components)
        : components(components) {}
    bool HasNext() override
    {
        return position < components.size();
    }
    MenuComponent* Next() override
    {
        if (!HasNext())
        {
            return nullptr;
        }
        return components[position++].get();
    }
protected:
    int position{0};
    const std::vector<std::shared_ptr<MenuComponent>>& components;
};

// 复合迭代器
class CompositeIterator : public Iterator
{
public:
    bool HasNext() override
    {
        if(stack.empty()) return false;
        Iterator* iterator = stack.top();
        if(!iterator->HasNext())
        {
            stack.pop();
            return HasNext();
        }
        return true;
    }
    MenuComponent* Next() override;
    std::stack<Iterator*> stack;
};

class Menu : public MenuComponent
{
public:
    Menu(const std::string& name, const std::string& description)
        : name(name), description(description) {}
    void Add(std::shared_ptr<MenuComponent> component) override
    {
        menuComponents.push_back(component);
    }
    void Remove(std::shared_ptr<MenuComponent> component) override
    {
        auto it = std::find(menuComponents.begin(), menuComponents.end(), component);
        if (it != menuComponents.end())
        {
            menuComponents.erase(it);
        }
    }
    std::shared_ptr<MenuComponent> GetChild(int index) override
    {
        if (index < 0 || index >= static_cast<int>(menuComponents.size()))
        {
            throw std::out_of_range("Index out of range");
        }
        return menuComponents[index];
    }
    std::string GetName() const override
    {
        return name;
    }
    std::string GetDescription() const override
    {
        return description;
    }
    void Print() const override
    {
        std::cout << std::endl << GetName();
        std::cout << ", " << GetDescription() << std::endl;
        std::cout << "---------------------" << std::endl;
        for (const auto& component : menuComponents)
        {
            component->Print();
        }
    }
    Iterator* CreateIterator()
    {
        SimpleIterator* simpleIterator = new SimpleIterator(menuComponents);
        CompositeIterator* compositeIterator = new CompositeIterator();
        compositeIterator->stack.push(simpleIterator);
        return compositeIterator;
    }
protected:
    std::vector<std::shared_ptr<MenuComponent>> menuComponents;
    std::string name;
    std::string description;
};

MenuComponent* CompositeIterator::Next()
{
    if(!HasNext()) return nullptr;
    Iterator* iterator = stack.top();
    MenuComponent* component = iterator->Next();
    // 如果是菜单，则将其迭代器压入栈中
    // 十分不符合C++安全规定的写法，因为用了dynamic_cast
    Menu* menu = dynamic_cast<Menu*>(component);
    if(menu)
    {
        stack.push(menu->CreateIterator());
    }
    return component;
}

int main()
{
    auto pancakeHouseMenu = std::make_shared<Menu>("PANCAKE HOUSE MENU", "Breakfast");
    auto dinerMenu = std::make_shared<Menu>("DINER MENU", "Lunch");
    auto nuaaMenu =  std::make_shared<Menu>("NUAA MENU", "Shit");
    auto dessertMenu = std::make_shared<Menu>("DESSERT MENU", "Dessert of course!");
    auto allMenus = std::make_shared<Menu>("ALL MENUS", "All menus combined");

    allMenus->Add(pancakeHouseMenu);
    allMenus->Add(dinerMenu);
    allMenus->Add(nuaaMenu);

    pancakeHouseMenu->Add(std::make_shared<MenuItem>(
        "K&B's Pancake Breakfast",
        "Pancakes with scrambled eggs, and toast",
        2.99,
        true));

    pancakeHouseMenu->Add(std::make_shared<MenuItem>(
        "Regular Pancake Breakfast",
        "Pancakes with fried eggs, sausage",
        2.99,
        false));

    dinerMenu->Add(std::make_shared<MenuItem>(
        "Vegetarian BLT",
        "(Fakin') Bacon with lettuce & tomato on whole wheat",
        2.99,
        true));

    dinerMenu->Add(dessertMenu);

    dessertMenu->Add(std::make_shared<MenuItem>(
        "Apple Pie",
        "Apple pie with a flakey crust, topped with vanilla icecream",
        1.59,
        true));

    nuaaMenu->Add(std::make_shared<MenuItem>(
        "NUAA is garbage",
        "As we know, NUAA is a piece of shit",
        114514.0,
        true));

    allMenus->Print();

    Iterator* iterator = allMenus->CreateIterator();
    std::cout << std::endl << "VEGETARIAN MENU (By Iterator!)" << std::endl;
    std::cout << "---------------" << std::endl;
    while (iterator->HasNext())
    {
        MenuComponent* component = iterator->Next();
        try
        {
            if (component->IsVegetarian())
            {
                component->Print();
            }
        }
        catch (const std::runtime_error&)
        {
            // 忽略不支持IsVegetarian的组件
        }
    }
    delete iterator;
    return 0;
}

输出：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
ALL MENUS, All menus combined
---------------------

PANCAKE HOUSE MENU, Breakfast
---------------------
  K&B's Pancake Breakfast (v), 2.99
     -- Pancakes with scrambled eggs, and toast
  Regular Pancake Breakfast, 2.99
     -- Pancakes with fried eggs, sausage

DINER MENU, Lunch
---------------------
  Vegetarian BLT (v), 2.99
     -- (Fakin') Bacon with lettuce & tomato on whole wheat

DESSERT MENU, Dessert of course!
---------------------
  Apple Pie (v), 1.59
     -- Apple pie with a flakey crust, topped with vanilla icecream

NUAA MENU, Shit
---------------------
  NUAA is garbage (v), 114514
     -- As we know, NUAA is a piece of shit

VEGETARIAN MENU (By Iterator!)
---------------
  K&B's Pancake Breakfast (v), 2.99
     -- Pancakes with scrambled eggs, and toast
  Vegetarian BLT (v), 2.99
     -- (Fakin') Bacon with lettuce & tomato on whole wheat
  Apple Pie (v), 1.59
     -- Apple pie with a flakey crust, topped with vanilla icecream
  Apple Pie (v), 1.59
     -- Apple pie with a flakey crust, topped with vanilla icecream
  NUAA is garbage (v), 114514
     -- As we know, NUAA is a piece of shit

符合的设计原则：里氏替换原则。

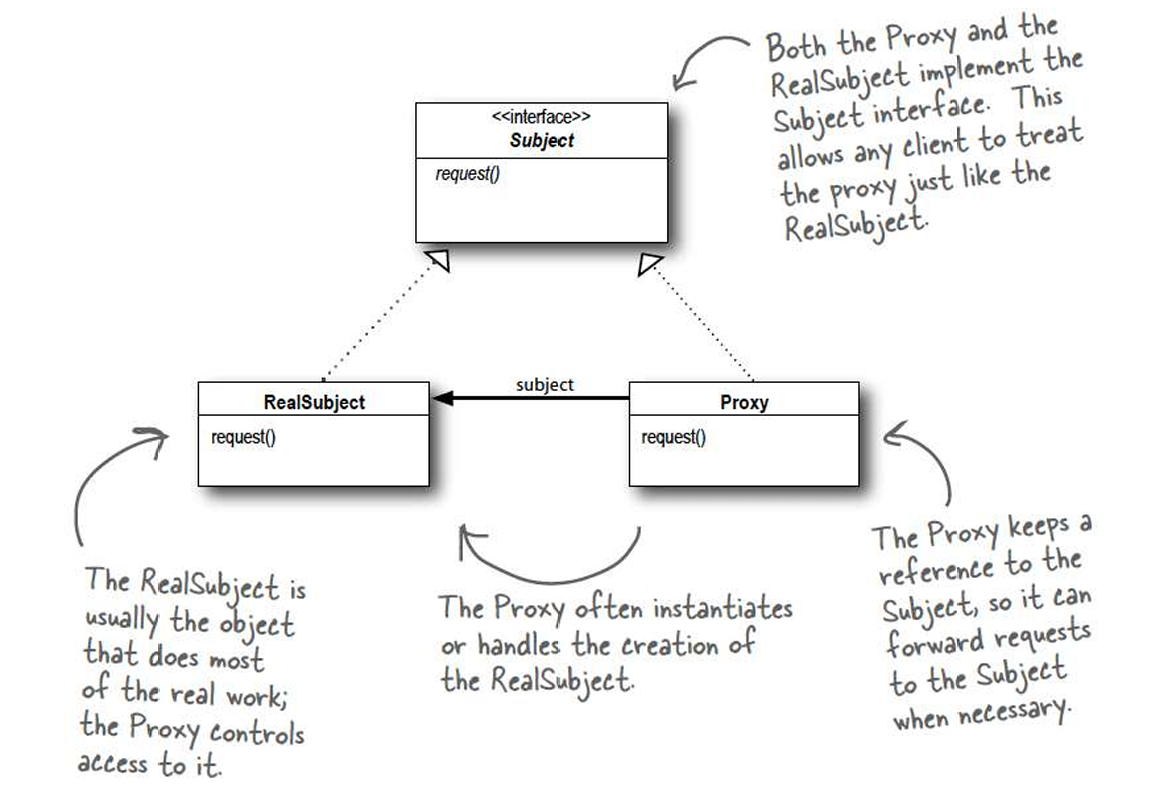

代理模式

Insight：代理模式的核心思想是通过引入一个代理对象来控制对另一个对象的访问，从而实现对该对象的功能进行扩展或限制。这样可以在不修改原始对象代码的情况下，实现对其行为的控制和管理。

alt text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
#include <iostream>
#include <memory>
#include <cstdlib>
#include <chrono>
#include <string>
#include <thread>

// 代理模式
// 为其他对象提供一种代理以控制对这个对象的访问
// 这里用图片加载的例子，代理对象在真正需要图片时才加载它
class Image
{
public:
    virtual void Display() = 0;
    virtual ~Image() = default;
};

class RealImage : public Image
{
public:
    explicit RealImage(const std::string& filename) : filename(filename)
    {
        startTime = std::chrono::high_resolution_clock::now();
        LoadFromDisk();
    }
    void Display() override
    {
        std::cout << "Displaying " << filename << std::endl;
    }
    bool IsLoaded() const
    {
        auto currentTime = std::chrono::high_resolution_clock::now();
        auto elapsed = std::chrono::duration_cast<std::chrono::seconds>(currentTime - startTime);
        return elapsed.count() >= 5;  // 5秒后加载完成
    }
private:
    void LoadFromDisk()
    {
        std::cout << "Loading " << filename << " from disk." << std::endl;
    }
    std::string filename;
    std::chrono::high_resolution_clock::time_point startTime;
};

class ProxyImage : public Image
{
public:
    explicit ProxyImage(const std::string& filename) : filename(filename), realImage(nullptr) {}
    void Display() override
    {
        while(!realImage || !realImage->IsLoaded())
        {
            if (!realImage)
            {
                std::cout << "Real image not loaded yet. Loading now..." << std::endl;
                realImage = std::make_unique<RealImage>(filename);
            }
            else
            {
                std::cout << "Image is still loading. Please wait..." << std::endl;
            }
            std::this_thread::sleep_for(std::chrono::seconds(1));
        }
        realImage->Display();
    }
private:
    std::string filename;
    std::unique_ptr<RealImage> realImage;
};

int main()
{
    ProxyImage image1("test_image_1.jpg");

    // 图像未被加载
    std::cout << "Proxy Image objects created." << std::endl;

    // 只有在需要显示图像时，图像才会被加载
    image1.Display();

    return 0;
}

输出：

1
2
3
4
5
6
7
8
Proxy Image objects created.
Real image not loaded yet. Loading now...
Loading test_image_1.jpg from disk.
Image is still loading. Please wait...
Image is still loading. Please wait...
Image is still loading. Please wait...
Image is still loading. Please wait...
Displaying test_image_1.jpg

符合的设计原则：合成复用原则、迪米特法则。

行为型模式

策略模式

Insight：策略模式的核心思想是将算法封装在独立的策略类中，从而使得客户端代码可以在运行时动态地选择和切换不同的算法。这样可以提高系统的灵活性和可扩展性，同时遵循开闭原则。

alt text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
#include <iostream>
#include <memory>

// 设计一个鸭子，它可以动态地改变叫声

class QuackBehavior
{
public:
    virtual void quack() = 0;
    virtual ~QuackBehavior() = default;
};

class Quack : public QuackBehavior
{
public:
    virtual void quack() override
    {
        std::cout << "Quack!" << std::endl;
    }
    virtual ~Quack() = default;
};

class Squeak : public QuackBehavior
{
public:
    virtual void quack() override
    {
        std::cout << "Squeak!" << std::endl;
    }
    virtual ~Squeak() = default;
};

class Duck
{
public:
    Duck(std::unique_ptr<QuackBehavior> qb) : quackBehavior(std::move(qb)) {}

    void performQuack()
    {
        quackBehavior->quack();
    }

    void setQuackBehavior(std::unique_ptr<QuackBehavior> qb)
    {
        quackBehavior = std::move(qb);
    }
private:
    std::unique_ptr<QuackBehavior> quackBehavior;
};

int main()
{
    // 创建两个不同的叫声行为
    std::unique_ptr<QuackBehavior> quackBehavior1 = std::make_unique<Quack>();
    std::unique_ptr<QuackBehavior> quackBehavior2 = std::make_unique<Squeak>();
    // 创建一只鸭子，初始叫声为Quack
    Duck duck(std::move(quackBehavior1));
    duck.performQuack(); // 输出: Quack!
    // 动态改变鸭子的叫声为Squeak
    duck.setQuackBehavior(std::move(quackBehavior2));
    duck.performQuack(); // 输出: Squeak!
    return 0;
}

输出：

1
2
Quack!
Squeak!

符合的设计原则：开闭原则、依赖倒置原则。

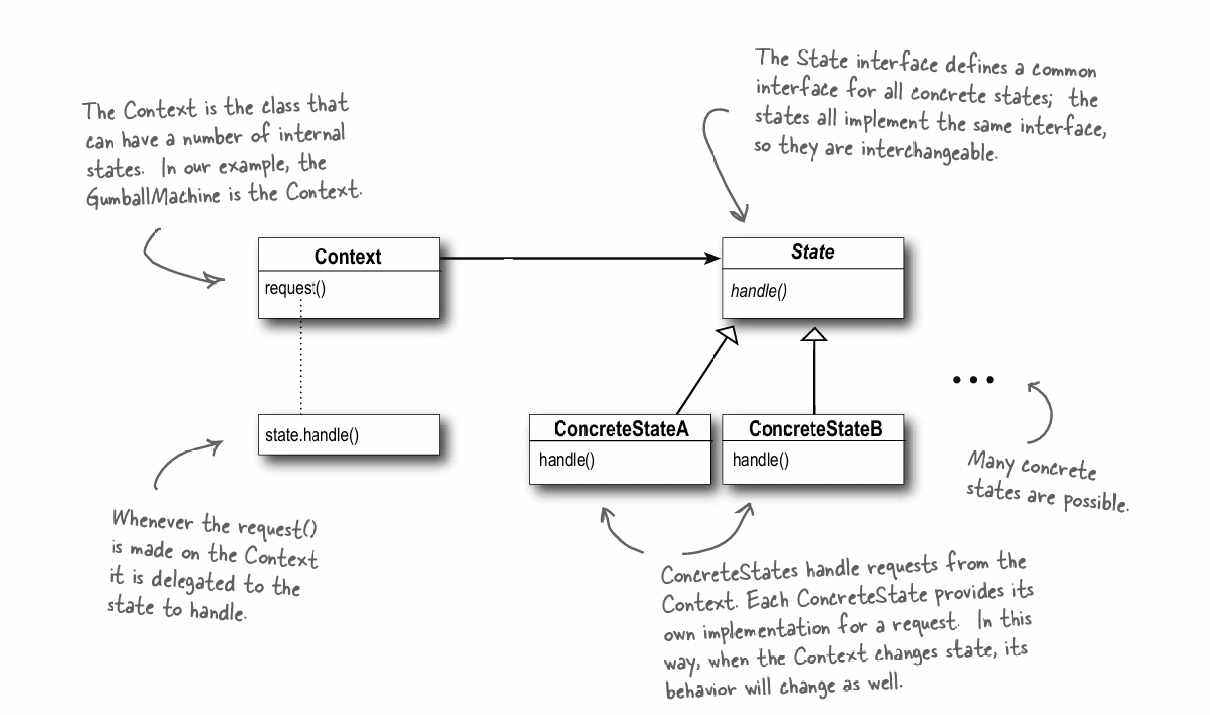

状态模式

Insight：状态模式的核心思想是将对象的状态封装在独立的状态类中，从而使得对象在不同状态下表现出不同的行为。这样可以实现状态之间的切换和管理，同时提高系统的灵活性和可维护性。

类图和策略模式是一样的，但是意义不同。

alt text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
#include <iostream>
#include <memory>

// 糖果机例子，四个状态

class State
{
public:
    virtual void InsertQuarter() = 0;   // 投入硬币
    virtual void EjectQuarter() = 0;    // 退回硬币
    virtual void TurnCrank() = 0;       // 转动曲柄
    virtual void DispenseGumball() = 0; // 发放糖果
    virtual ~State() = default;
};

class GumballMachine;

class NoQuarterState : public State
{
public:
    explicit NoQuarterState(GumballMachine* machine) : machine(machine) {}
    void InsertQuarter() override;
    void EjectQuarter() override;
    void TurnCrank() override;
    void DispenseGumball() override;

private:
    GumballMachine* machine;
};

class HasQuarterState : public State
{
public:
    explicit HasQuarterState(GumballMachine* machine) : machine(machine) {}
    void InsertQuarter() override;
    void EjectQuarter() override;
    void TurnCrank() override;
    void DispenseGumball() override;

private:
    GumballMachine* machine;
};

class SoldState : public State
{
public:
    explicit SoldState(GumballMachine* machine) : machine(machine) {}
    void InsertQuarter() override;
    void EjectQuarter() override;
    void TurnCrank() override;
    void DispenseGumball() override;

private:
    GumballMachine* machine;
};

class SoldOutState : public State
{
public:
    explicit SoldOutState(GumballMachine* machine) : machine(machine) {}
    void InsertQuarter() override;
    void EjectQuarter() override;
    void TurnCrank() override;
    void DispenseGumball() override;

private:
    GumballMachine* machine;
};

class GumballMachine
{
public:
    explicit GumballMachine(int count)
        : gumballCount(count), noQuarterState(this), hasQuarterState(this),
          soldState(this), soldOutState(this)
    {
        if (gumballCount == 0)
        {
            currentState = &soldOutState;
        }
        else
        {
            currentState = &noQuarterState;
        }
    }
    void InsertQuarter()
    {
        currentState->InsertQuarter();
    }
    void EjectQuarter()
    {
        currentState->EjectQuarter();
    }
    void TurnCrank()
    {
        currentState->TurnCrank();
        currentState->DispenseGumball();
    }
    void SetState(State* state)
    {
        currentState = state;
    }
    void ReleaseGumball()
    {
        if (gumballCount > 0)
        {
            --gumballCount;
            std::cout << "A gumball is released. Remaining gumballs: " << gumballCount << std::endl;
        }
    }
    State* GetNoQuarterState()
    {
        return &noQuarterState;
    }
    State* GetHasQuarterState()
    {
        return &hasQuarterState;
    }
    State* GetSoldState()
    {
        return &soldState;
    }
    State* GetSoldOutState()
    {
        return &soldOutState;
    }
    int GetGumballCount() const
    {
        return gumballCount;
    }
private:
    // 这里和strategy模式不一样，我们将具体状态相关的对象隐藏在机器内部，用户完全不知道state对象的存在
    // 而strategy模式中，用户需要创建具体策略对象并传递给上下文
    // 其次注意这里我一开始想把状态设计为static，但是状态需要持有机器的指针，所以不能设计为static
    NoQuarterState noQuarterState;
    HasQuarterState hasQuarterState;
    SoldState soldState;
    SoldOutState soldOutState;
    State* currentState;
    int gumballCount{};
};

void NoQuarterState::InsertQuarter()
{
    std::cout << "You inserted a quarter." << std::endl;
    machine->SetState(machine->GetHasQuarterState());
}

void NoQuarterState::EjectQuarter()
{
    std::cout << "You haven't inserted a quarter." << std::endl;
}

void NoQuarterState::TurnCrank()
{
    std::cout << "You turned, but there's no quarter." << std::endl;
}

void NoQuarterState::DispenseGumball()
{
    std::cout << "You need to pay first." << std::endl;
}

void HasQuarterState::InsertQuarter()
{
    std::cout << "You can't insert another quarter." << std::endl;
}

void HasQuarterState::EjectQuarter()
{
    std::cout << "Quarter returned." << std::endl;
    machine->SetState(machine->GetNoQuarterState());
}

void HasQuarterState::TurnCrank()
{
    std::cout << "You turned the crank." << std::endl;
    machine->SetState(machine->GetSoldState());
}

void HasQuarterState::DispenseGumball()
{
    std::cout << "No gumball dispensed." << std::endl;
}

void SoldState::InsertQuarter()
{
    std::cout << "Please wait, we're already giving you a gumball." << std::endl;
}

void SoldState::EjectQuarter()
{
    std::cout << "Sorry, you already turned the crank." << std::endl;
}

void SoldState::TurnCrank()
{
    std::cout << "Turning twice doesn't get you another gumball!" << std::endl;
}

void SoldState::DispenseGumball()
{
    // 将发放糖果的逻辑在machine实现，state在这里调用
    machine->ReleaseGumball();
    if (machine->GetGumballCount() > 0)
    {
        machine->SetState(machine->GetNoQuarterState());
    }
    else
    {
        std::cout << "Oops, out of gumballs!" << std::endl;
        machine->SetState(machine->GetSoldOutState());
    }
}

void SoldOutState::InsertQuarter()
{
    std::cout << "You can't insert a quarter, the machine is sold out." << std::endl;
}

void SoldOutState::EjectQuarter()
{
    std::cout << "You can't eject, you haven't inserted a quarter yet." << std::endl;
}

void SoldOutState::TurnCrank()
{
    std::cout << "You turned, but there are no gumballs." << std::endl;
}

void SoldOutState::DispenseGumball()
{
    std::cout << "No gumball dispensed." << std::endl;
}



int main()
{
    GumballMachine machine(2);

    std::cout << "=== Gumball Machine Simulation ===" << std::endl;
    std::cout << "=== 1. Insert Quarter, Turn Crank ===" << std::endl;
    machine.InsertQuarter();
    machine.TurnCrank();

    std::cout << "=== 2. Insert Quarter, Eject Quarter ===" << std::endl;
    machine.InsertQuarter();
    machine.EjectQuarter();

    std::cout << "=== 3. Eject Quarter without Inserting ===" << std::endl;
    machine.EjectQuarter();

    std::cout << "=== 4. Insert Quarter, Turn Crank ===" << std::endl;
    machine.InsertQuarter();
    machine.TurnCrank();

    std::cout << "=== 5. Insert Quarter and Turn Crank when Sold Out ===" << std::endl;
    machine.InsertQuarter();
    machine.TurnCrank();

    return 0;
}

输出：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
=== Gumball Machine Simulation ===
=== 1. Insert Quarter, Turn Crank ===
You inserted a quarter.
You turned the crank.
A gumball is released. Remaining gumballs: 1
=== 2. Insert Quarter, Eject Quarter ===
You inserted a quarter.
Quarter returned.
=== 3. Eject Quarter without Inserting ===
You haven't inserted a quarter.
=== 4. Insert Quarter, Turn Crank ===
You inserted a quarter.
You turned the crank.
A gumball is released. Remaining gumballs: 0
Oops, out of gumballs!
=== 5. Insert Quarter and Turn Crank when Sold Out ===
You can't insert a quarter, the machine is sold out.
You turned, but there are no gumballs.
No gumball dispensed.

符合的设计原则：开闭原则、依赖倒置原则。

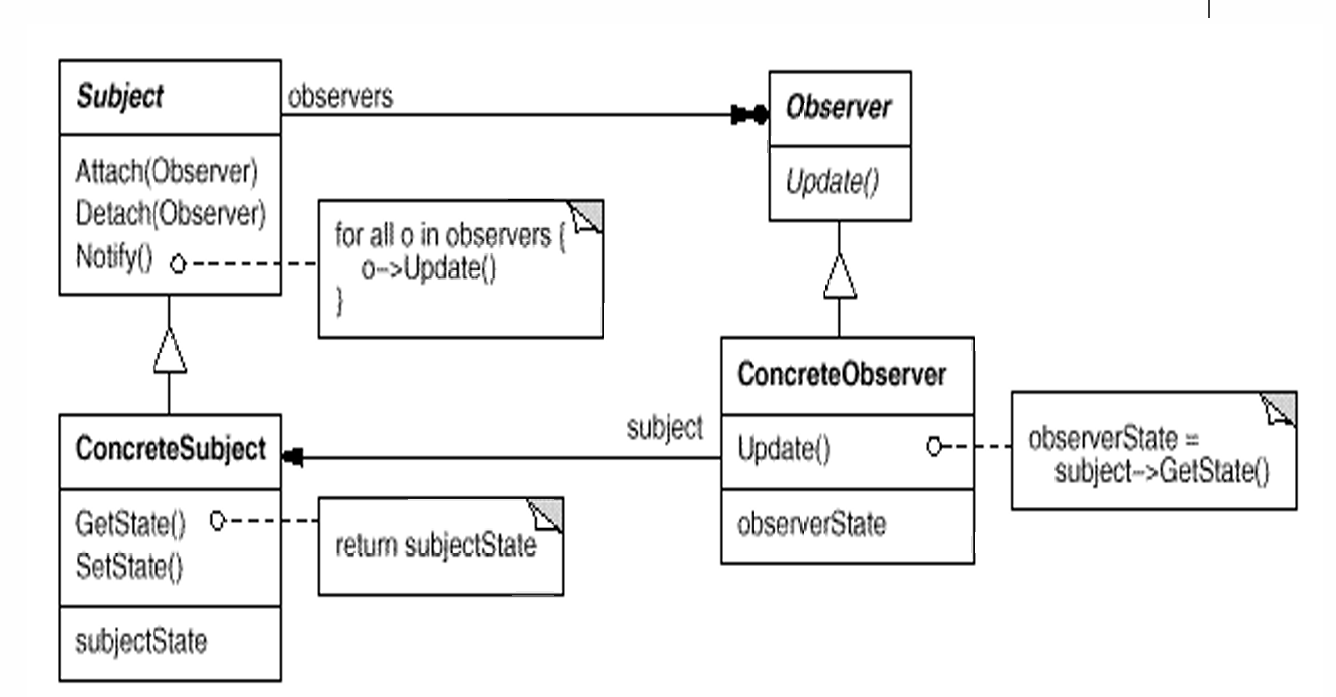

观察者模式

我最喜欢也最常用的设计模式

Insight：观察者模式的核心思想是通过定义对象之间的一对多依赖关系，使得当一个对象的状态发生变化时，所有依赖于它的对象都会得到通知并自动更新。这样可以实现对象之间的松耦合，提高系统的灵活性和可维护性。

alt text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
#include <iostream>
#include <memory>
#include <vector>
#include <algorithm>
#include <limits>

// 天气数据布告板例子
// TODO: 新建文件实现ChangeManager

class Observer
{
public:
    // Subject对于Observer所了解的，只有这个update接口
    virtual void update(float temperature, float humidity, float pressure) = 0;
    virtual ~Observer() = default;
};

class Subject
{
public:
    virtual void registerObserver(Observer* o) = 0;
    virtual void removeObserver(Observer* o) = 0;
    virtual void notifyObservers() = 0;
    virtual ~Subject() = default;
};

class WeatherData : public Subject
{
public:
    void registerObserver(Observer* o) override
    {
        observers.push_back(o);
    }
    void removeObserver(Observer* o) override
    {
        auto it = std::find(observers.begin(), observers.end(), o);
        if (it != observers.end())
        {
            observers.erase(it);
        }
    }
    void notifyObservers() override
    {
        for(Observer* o: observers)
        {
            o->update(temperature, humidity, pressure);
        }
    }

    void SetMeasurements(float temp, float hum, float pres)
    {
        temperature = temp;
        humidity = hum;
        pressure = pres;
        notifyObservers();
    }
private:
    std::vector<Observer*> observers;
    float temperature{};
    float humidity{};
    float pressure{};
};

// 简单显示当前天气情况的布告板
class CurrentConditionsDisplay : public Observer
{
public:
    CurrentConditionsDisplay(WeatherData* wd) : weatherData(wd) {}
    void update(float temperature, float humidity, float pressure) override
    {
        this->temperature = temperature;
        this->humidity = humidity;
        display();
    }
    void display()
    {
        std::cout << "Current conditions: " << temperature << "F degrees and " << humidity << "% humidity" << std::endl;
    }
private:
    WeatherData* weatherData;
    float temperature{};
    float humidity{};
};

// 统计显示布告板，显示平均、最高、最低温度
class StatisticsDisplay : public Observer
{
public:
    StatisticsDisplay(WeatherData* wd) : weatherData(wd) {}
    void update(float temperature, float humidity, float pressure) override
    {
        tempSum += temperature;
        numReadings++;
        if (temperature > maxTemp) {
            maxTemp = temperature;
        }
        if (temperature < minTemp) {
            minTemp = temperature;
        }
        display();
    }
    void display()
    {
        std::cout << "Statistics Display: " ;
        std::cout << "Avg/Max/Min temperature = " << (tempSum / numReadings)
                  << "/" << maxTemp << "/" << minTemp << std::endl;
    }
private:
    WeatherData* weatherData;
    float tempSum{};
    int numReadings{};
    float maxTemp{-std::numeric_limits<float>::infinity()};
    float minTemp{std::numeric_limits<float>::infinity()};
};

int main()
{
    WeatherData weatherData;

    CurrentConditionsDisplay currentDisplay(&weatherData);
    StatisticsDisplay statisticsDisplay(&weatherData);

    weatherData.registerObserver(&currentDisplay);
    weatherData.registerObserver(&statisticsDisplay);

    weatherData.SetMeasurements(80, 65, 30.4f);
    weatherData.SetMeasurements(82, 70, 29.2f);
    weatherData.SetMeasurements(78, 90, 29.2f);

    return 0;
}

输出：

1
2
3
4
5
6
Current conditions: 80F degrees and 65% humidity
Statistics Display: Avg/Max/Min temperature = 80/80/80
Current conditions: 82F degrees and 70% humidity
Statistics Display: Avg/Max/Min temperature = 81/82/80
Current conditions: 78F degrees and 90% humidity
Statistics Display: Avg/Max/Min temperature = 80/82/78

符合的设计原则：单一职责原则、依赖倒置原则。

迭代器模式

Insight：迭代器模式的核心思想是通过提供一种统一的方式来访问集合对象中的元素，而不暴露集合对象的内部结构。这样可以实现对不同类型集合的遍历操作，同时提高代码的可复用性和可维护性。

AP对这个应该非常熟悉。

alt text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
#include <iostream>
#include <memory>
#include <string>
#include <vector>
#include <unordered_map>

// 迭代器模式
// 提供一种方法顺序访问一个聚合对象中的各个元素，而又不暴露该对象的内部表示
// 用菜单和菜单项举例子，这里规定迭代器访问的元素固定为菜单项(MenuItem)
// 设计两个菜单，PancakeHouseMenu和DinerMenu，分别使用不同的数据结构存储菜单项

class MenuItem
{
public:
    MenuItem() = default;
    MenuItem(const std::string& name, const std::string& description, double price, bool vegetarian)
        : name(name), description(description), price(price), vegetarian(vegetarian) {}
    std::string GetName() const
    {
        return name;
    }
    std::string GetDescription() const
    {
        return description;
    }
    double GetPrice() const
    {
        return price;
    }
    bool IsVegetarian() const
    {
        return vegetarian;
    }
protected:
    std::string name;
    std::string description;
    double price;
    bool vegetarian; // 是否素食
    // 这个。。。个人有把bool放在类最后的习惯，节省内存对齐空间
};

class Iterator
{
public:
    virtual bool HasNext() = 0;
    virtual MenuItem* Next() = 0;
    virtual ~Iterator() = default;
};

class Menu
{
public:
    virtual Iterator* CreateIterator() = 0;
    virtual ~Menu() = default;
};

class PancakeHouseMenu : public Menu
{
    friend class PancakeHouseMenuIterator;
public:
    PancakeHouseMenu()
    {
        // 初始化一些菜单项
        menuItems.emplace_back("Pancake Breakfast", "Pancakes with scrambled eggs, and toast", 2.99, false);
        menuItems.emplace_back("Regular Pancake", "Pancakes with fried eggs, sausage", 2.99, false);
        menuItems.emplace_back("Blueberry Pancake", "Pancakes made with fresh blueberries", 3.49, true);
        menuItems.emplace_back("Waffles", "Waffles with your choice of blueberries or strawberries", 3.59, true);
    }
    Iterator* CreateIterator() override;
    const std::vector<MenuItem>& GetMenuItems() const
    {
        return menuItems;
    }
private:
    std::vector<MenuItem> menuItems;
};

class DinerMenu : public Menu
{
    friend class DinerMenuIterator;
public:
    DinerMenu()
    {
        // 初始化一些菜单项
        // std::unordered_map 的 operator[] 会先默认构造值, 因此注意MenuItem需要有默认构造函数
        menuItems[0] = MenuItem("Vegetarian BLT", "(Fakin') Bacon with lettuce & tomato on whole wheat", 2.99, true);
        menuItems[1] = MenuItem("BLT", "Bacon with lettuce & tomato on whole wheat", 2.99, false);
        menuItems[2] = MenuItem("Soup of the day", "Soup of the day, with a side of potato salad", 3.29, false);
        menuItems[3] = MenuItem("Hotdog", "A hot dog, with sauerkraut, relish, onions, topped with cheese", 3.05, false);
    }
    Iterator* CreateIterator() override;
    const MenuItem* GetMenuItem(int index) const
    {
        auto it = menuItems.find(index);
        if (it != menuItems.end())
        {
            return &(it->second);
        }
        return nullptr;
    }
    int GetMenuSize() const
    {
        return static_cast<int>(menuItems.size());
    }
private:
    std::unordered_map<int, MenuItem> menuItems;
};

class PancakeHouseMenuIterator : public Iterator
{
public:
    explicit PancakeHouseMenuIterator(std::vector<MenuItem>& items) : items(items) {}
    bool HasNext() override
    {
        return position < items.size();
    }
    MenuItem* Next() override
    {
        if (!HasNext())
        {
            return nullptr;
        }
        return &(items[position++]);
    }
protected:
    int position{0};
    std::vector<MenuItem>& items;
};

class DinerMenuIterator : public Iterator
{
public:
    explicit DinerMenuIterator(std::unordered_map<int, MenuItem>& items) : items(items) {}
    bool HasNext() override
    {
        return position < static_cast<int>(items.size());
    }
    MenuItem* Next() override
    {
        if (!HasNext())
        {
            return nullptr;
        }
        return &(items[position++]);
    }
protected:
    int position{0};
    std::unordered_map<int, MenuItem>& items;
};

Iterator* PancakeHouseMenu::CreateIterator()
{
    return new PancakeHouseMenuIterator(menuItems);
}

Iterator* DinerMenu::CreateIterator()
{
    return new DinerMenuIterator(menuItems);
}

int main()
{
    PancakeHouseMenu pancakeHouseMenu;
    DinerMenu dinerMenu;

    Iterator* pancakeIterator = pancakeHouseMenu.CreateIterator();
    Iterator* dinerIterator = dinerMenu.CreateIterator();

    std::cout << "MENU\n----\nBREAKFAST" << std::endl;
    while (pancakeIterator->HasNext())
    {
        MenuItem* item = pancakeIterator->Next();
        std::cout << item->GetName() << ", " << item->GetPrice() << " -- " << item->GetDescription() << std::endl;
    }

    std::cout << "\nLUNCH" << std::endl;
    while (dinerIterator->HasNext())
    {
        MenuItem* item = dinerIterator->Next();
        std::cout << item->GetName() << ", " << item->GetPrice() << " -- " << item->GetDescription() << std::endl;
    }

    delete pancakeIterator;
    delete dinerIterator;

    return 0;
}

输出：

1
2
3
4
5
6
7
8
9
10
11
12
13
MENU
----
BREAKFAST
Pancake Breakfast, 2.99 -- Pancakes with scrambled eggs, and toast
Regular Pancake, 2.99 -- Pancakes with fried eggs, sausage
Blueberry Pancake, 3.49 -- Pancakes made with fresh blueberries
Waffles, 3.59 -- Waffles with your choice of blueberries or strawberries

LUNCH
Vegetarian BLT, 2.99 -- (Fakin') Bacon with lettuce & tomato on whole wheat
BLT, 2.99 -- Bacon with lettuce & tomato on whole wheat
Soup of the day, 3.29 -- Soup of the day, with a side of potato salad
Hotdog, 3.05 -- A hot dog, with sauerkraut, relish, onions, topped with cheese

还有更复杂的复合迭代器，见组合模式中的实现。

符合的设计原则：单一职责原则、开闭原则。

模板方法模式

Insight：模板模式的核心思想是通过定义一个算法的骨架，并将某些步骤延迟到子类中实现，从而使得子类可以在不改变算法结构的情况下重新定义算法的某些特定步骤。这样可以提高代码的复用性和可维护性。

alt text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
#include <iostream>
#include <memory>

// 模板方法
// 定义一个操作中的算法的骨架，而将一些步骤延迟到子类中
// 冲咖啡和冲茶的例子
class CaffeineBeverage
{
public:
    void prepareRecipe() // 模板方法
    {
        boilWater();
        brew();
        pourInCup();
        addCondiments();
    }
    virtual ~CaffeineBeverage() = default;
protected:
    virtual void brew() = 0;
    virtual void addCondiments() = 0;
    void boilWater()
    {
        std::cout << "Boiling water" << std::endl;
    }
    void pourInCup()
    {
        std::cout << "Pouring into cup" << std::endl;
    }
};

class Coffee : public CaffeineBeverage
{
protected:
    void brew() override
    {
        std::cout << "Dripping Coffee through filter" << std::endl;
    }
    void addCondiments() override
    {
        std::cout << "Adding Sugar and Milk" << std::endl;
    }
};

class Tea : public CaffeineBeverage
{
protected:
    void brew() override
    {
        std::cout << "Steeping the tea" << std::endl;
    }
    void addCondiments() override
    {
        std::cout << "Adding Lemon" << std::endl;
    }
};

int main()
{
    std::unique_ptr<CaffeineBeverage> coffee = std::make_unique<Coffee>();
    std::cout << "Making Coffee:" << std::endl;
    coffee->prepareRecipe();

    std::cout << std::endl;

    std::unique_ptr<CaffeineBeverage> tea = std::make_unique<Tea>();
    std::cout << "Making Tea:" << std::endl;
    tea->prepareRecipe();

    return 0;
}

输出：

1
2
3
4
5
6
7
8
9
10
11
Making Coffee:
Boiling water
Dripping Coffee through filter
Pouring into cup
Adding Sugar and Milk

Making Tea:
Boiling water
Steeping the tea
Pouring into cup
Adding Lemon

符合的设计原则：单一职责原则、开闭原则。

命令模式

Insight：命令模式的核心思想是将请求封装为一个对象，从而使得可以将请求参数化、队列化以及支持撤销操作。这样可以实现请求的解耦，提高系统的灵活性和可扩展性。

alt text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
#include <iostream>
#include <memory>
#include <vector>

// 命令模式，拿遥控器举例子
// 这份代码我只实现支持一次undo，因此状态保存可以直接放在命令对象中
class Command
{
public:
    virtual void execute() = 0;
    virtual void undo() = 0;
    virtual ~Command() = default;
};

// 宏命令：命令的集合
class MacroCommand : public Command
{
public:
    explicit MacroCommand(const std::vector<Command*>& commands) : commands(commands) {}
    void execute() override
    {
        for (auto& cmd : commands)
        {
            cmd->execute();
        }
    }
    void undo() override
    {
        for (auto it = commands.rbegin(); it != commands.rend(); ++it)
        {
            (*it)->undo();
        }
    }
private:
    std::vector<Command*> commands;
};

// 灯作为接收者，undo操作就是反向操作
class Light
{
public:
    void on()
    {
        std::cout << "Light is ON" << std::endl;
    }
    void off()
    {
        std::cout << "Light is OFF" << std::endl;
    }
};

class LightOnCommand : public Command
{
public:
    explicit LightOnCommand(Light* light) : light(light) {}
    void execute() override
    {
        light->on();
    }
    void undo() override
    {
        light->off();
    }
private:
    Light* light;
};

class LightOffCommand : public Command
{
public:
    explicit LightOffCommand(Light* light) : light(light) {}
    void execute() override
    {
        light->off();
    }
    void undo() override
    {
        light->on();
    }
private:
    Light* light;
};

// 风扇作为另一个接收者，支持多种速度设置
// 因此undo操作需要记录之前的速度状态
// 如果需要多次undo，可以考虑用栈来保存历史命令，这里我觉得应该把栈放在Receiver里更合适
// 当然Invoker中（这里是遥控器）也要用栈
enum Speed { OFF, LOW, MEDIUM, HIGH };
class CeilingFan
{
public:
    void high()
    {
        speed = HIGH;
        std::cout << "Ceiling Fan is on HIGH" << std::endl;
    }
    void medium()
    {
        speed = MEDIUM;
        std::cout << "Ceiling Fan is on MEDIUM" << std::endl;
    }
    void low()
    {
        speed = LOW;
        std::cout << "Ceiling Fan is on LOW" << std::endl;
    }
    void off()
    {
        speed = OFF;
        std::cout << "Ceiling Fan is OFF" << std::endl;
    }
    Speed getSpeed() const
    {
        return speed;
    }
private:

    Speed speed = OFF;
};

class CeilingFanHighCommand : public Command
{
public:
    explicit CeilingFanHighCommand(CeilingFan* fan) : fan(fan), prevSpeed(OFF) {}
    void execute() override
    {
        prevSpeed = fan->getSpeed();
        fan->high();
    }
    void undo() override
    {
        switch (prevSpeed)
        {
        case HIGH:
            fan->high();
            break;
        case MEDIUM:
            fan->medium();
            break;
        case LOW:
            fan->low();
            break;
        case OFF:
            fan->off();
            break;
        }
    }
private:
    CeilingFan* fan;
    Speed prevSpeed;
};

class CeilingFanMediumCommand : public Command
{
public:
    explicit CeilingFanMediumCommand(CeilingFan* fan) : fan(fan), prevSpeed(OFF) {}
    void execute() override
    {
        prevSpeed = fan->getSpeed();
        fan->medium();
    }
    void undo() override
    {
        switch (prevSpeed)
        {
        case HIGH:
            fan->high();
            break;
        case MEDIUM:
            fan->medium();
            break;
        case LOW:
            fan->low();
            break;
        case OFF:
            fan->off();
            break;
        }
    }
private:
    CeilingFan* fan;
    Speed prevSpeed;
};

class CeilingFanOffCommand : public Command
{
public:
    explicit CeilingFanOffCommand(CeilingFan* fan) : fan(fan), prevSpeed(OFF) {}
    void execute() override
    {
        prevSpeed = fan->getSpeed();
        fan->off();
    }
    void undo() override
    {
        switch (prevSpeed)
        {
        case HIGH:
            fan->high();
            break;
        case MEDIUM:
            fan->medium();
            break;
        case LOW:
            fan->low();
            break;
        case OFF:
            fan->off();
            break;
        }
    }
private:
    CeilingFan* fan;
    Speed prevSpeed;
};

class RemoteControl
{
public:
    void setCommand(int slot, Command* command)
    {
        if (slot == 1)
        {
            slot1Command = command;
        }
        else if (slot == 2)
        {
            slot2Command = command;
        }
    }
    void pressButton(int slot)
    {
        if (slot == 1 && slot1Command)
        {
            slot1Command->execute();
            lastCommand = slot1Command;
        }
        else if (slot == 2 && slot2Command)
        {
            slot2Command->execute();
            lastCommand = slot2Command;
        }
    }
    void pressUndo()
    {
        if (lastCommand)
        {
            lastCommand->undo();
        }
    }
    // 这里我将redo设计为再次执行上一个命令
    void pressRedo()
    {
        if (lastCommand)
        {
            lastCommand->execute();
        }
    }
private:
    Command* slot1Command = nullptr;
    Command* slot2Command = nullptr;
    Command* lastCommand = nullptr;
};

int main()
{
    RemoteControl remote;

    Light livingRoomLight;
    LightOnCommand lightOnCmd(&livingRoomLight);
    LightOffCommand lightOffCmd(&livingRoomLight);

    CeilingFan ceilingFan;
    CeilingFanHighCommand fanHighCmd(&ceilingFan);
    CeilingFanMediumCommand fanMediumCmd(&ceilingFan);
    CeilingFanOffCommand fanOffCmd(&ceilingFan);


    // 设置遥控器按钮
    remote.setCommand(1, &lightOnCmd);
    remote.setCommand(2, &fanHighCmd);

    // 测试灯的命令
    remote.pressButton(1); // 打开灯
    remote.pressUndo();     // 撤销，关闭灯

    // 测试风扇的命令
    remote.pressButton(2); // 风扇高速

    // 更换命令
    remote.setCommand(1, &fanMediumCmd);
    remote.pressButton(1); // 风扇中速
    remote.pressUndo();     // 撤销，恢复之前状态

    remote.setCommand(1, &fanOffCmd);
    remote.pressButton(1); // 关闭风扇
    remote.pressUndo();     // 撤销，恢复之前状态
    remote.pressRedo();     // 重做，关闭风扇

    // 测试宏命令
    std::cout << "\n--- Testing Macro Command ---\n" << std::endl;
    std::vector<Command*> partyOnCommands = { &lightOnCmd, &fanHighCmd };
    MacroCommand partyOnMacro(partyOnCommands);
    remote.setCommand(1, &partyOnMacro);
    remote.pressButton(1); // 执行宏命令
    remote.pressUndo();     // 撤销宏命令

    return 0;
}

输出：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Light is ON
Light is OFF
Ceiling Fan is on HIGH
Ceiling Fan is on MEDIUM
Ceiling Fan is on HIGH
Ceiling Fan is OFF
Ceiling Fan is on HIGH
Ceiling Fan is OFF

--- Testing Macro Command ---

Light is ON
Ceiling Fan is on HIGH
Ceiling Fan is OFF
Light is OFF

符合的设计原则：依赖倒置原则、单一职责原则。
